| Brand Name: | HSTECH |
| Model Number: | HS-120ST |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets per month |

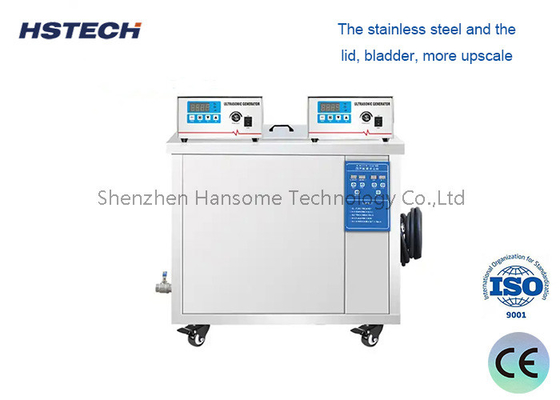

System and for SMT Cleaning Equipment Large Capacity 38L Ultrasonic Cleaner for Oil Dirty Parts
Specification
| Model | HS-120ST |
| Ultrasonic frequency | 28/40 kHz |
| The tank material | Stainless steel SUS304 stamping slot |
| Tank capacity | 38L |
| Timer | 1~99 min adjustable |
| Heater | 0 ~80℃ adjustable |
| Power | AC 100 ~ 120 V, 60 Hz/AC 200 ~ 240 V, 50 Hz |
| Ultrasonic power | 40~600 W adjustable, 12 transducers |
| Heating power | 1500W |
| The tank size | 500 x 300 x 250 mm (L x W x H) |
| Shape dimension | 670 x 480 x 700 mm (L x W x H) |
| N.W | 30KG |
| G.W | 35KG |
| Certification | CE,RoHS |
Ultrasonic device
1, Ultrasonic installation method: bottom-mounted shock plate;
2, 72 vibrators are installed at the bottom of the tank; Ultrasonic power: 0-3600W can be adjusted
3, ultrasonic power: 0 ~ 1800W * 2 sets (continuously adjustable), ultrasonic frequency 28 / 40KHz
4, The ultrasonic transducer adopts the pure industrial shock head imported from South Korea, which has large cleaning power and long service life;
5, Adopting the latest bonding technology of Korea and imported special adhesive to ensure better bonding performance between the transducer and the vibrating surface. No degumming considerations, stable performance. The transducers are all reinforced and equipped with high frequency wires.
We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same timeour experienced engineering team always grasps smart factory's developing direction,updates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
