| Brand Name: | OM |
| Model Number: | K type |
| MOQ: | 1 pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500pcs per month |

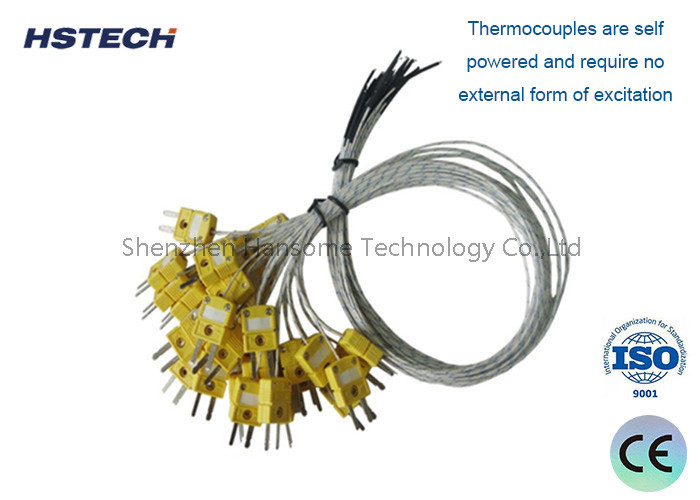

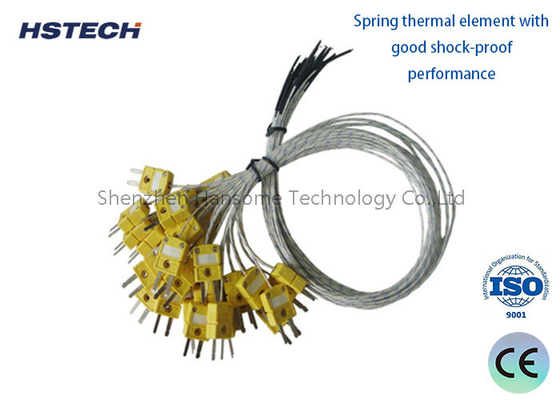

High Quality K Type Thermocouple with Connector TD Plugs SR Type Ceramic Plastic
Introduction
A thermocouple is a temperature-measuring device consisting of two dissimilar conductors that contact each other at one or more spots.
It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit.
Specification
| Product | Conductor material | Type | Graduation |
Use temperature°C (short time) |
Use temperature°C
|
|
|
Thermocouple |
PtRh30-Ptrh6 | WRR | B | 0-1800°C | 0-1600°C | |
| PtRh10-Pt | WRP | S | 0-1600°C | 0-1300°C | ||
| PtRh13-pT | WRB | R | 0-1600°C | 0-1300°C | ||
| NiCrSi-NiSi | WRM | N | 0-1000°C | 0-1000°C | ||
| NiCr-NiAl(Si) | WRN | K | 0-1200°C | 0-900°C | ||
| NrCr-constantan | WRE | E | 0-700°C | 0-600°C | ||
| Iron- Constantan | WRF | J | 0-600°C | 0-500°C | ||
| Copper-Constantan | WRC | T | 0-400°C | 0-350°C | ||
|
Thermal resistance |
Copper heat resistance | Cu50 | -50-150°C | |||
| Cu100 | -50-150°C | |||||
| Pt100 | -200-600°C | |||||
Application
Thermocouples are widely used in science and industry; applications include temperature measurement for kilns, gas turbine exhaust,
diesel engines, and other industrial processes. Thermocouples are also used in homes, offices and businesses as the temperature sensors
in thermostats, and also as flame sensors in safety devices for gas-powered major appliances.
We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same timeour experienced engineering team always grasps smart factory's developing direction,updates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
