| Brand Name: | OM |
| Model Number: | K type |
| MOQ: | 1 pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500pcs per month |

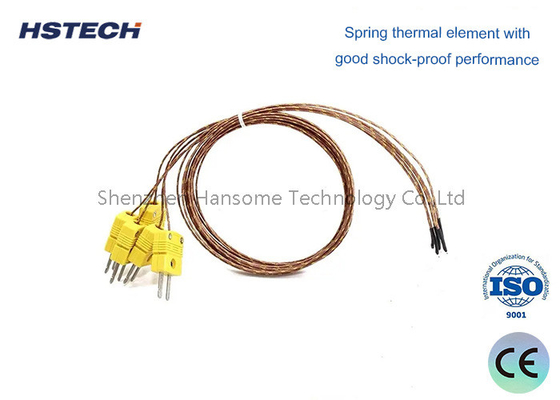

PtRh30-Ptrh6 WRR B Thermocouple with Connector TD Plugs SR Type Ceramic Plastic for 0-1800°C Use Temperature
Introduction
A thermocouple is a temperature-measuring device consisting of two dissimilar conductors that contact each other at one or more spots.
It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit.

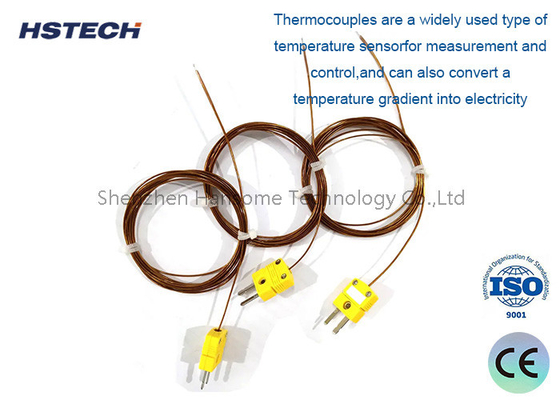

Thermocouples are a widely used type of temperature sensorfor measurement and control,and can also convert a temperature gradient
into electricity. Commercial thermocouples are inexpensive,interchangeable, are supplied with standard connectors, and can measure a
wide range of temperatures.
In contrast to most other methods of temperature measurement, thermocouples are self powered and require no external form of excitation.
Specification
| Product | Conductor material | Type | Graduation |
Use temperature°C (short time) |
Use temperature°C
|
|
|
Thermocouple |
PtRh30-Ptrh6 | WRR | B | 0-1800°C | 0-1600°C | |
| PtRh10-Pt | WRP | S | 0-1600°C | 0-1300°C | ||
| PtRh13-pT | WRB | R | 0-1600°C | 0-1300°C | ||
| NiCrSi-NiSi | WRM | N | 0-1000°C | 0-1000°C | ||
| NiCr-NiAl(Si) | WRN | K | 0-1200°C | 0-900°C | ||
| NrCr-constantan | WRE | E | 0-700°C | 0-600°C | ||
| Iron- Constantan | WRF | J | 0-600°C | 0-500°C | ||
| Copper-Constantan | WRC | T | 0-400°C | 0-350°C | ||
|
Thermal resistance |
Copper heat resistance | Cu50 | -50-150°C | |||
| Cu100 | -50-150°C | |||||
| Pt100 | -200-600°C | |||||
