| Brand Name: | KIC |
| Model Number: | 2000 |
| MOQ: | 1 pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500pcs per month |

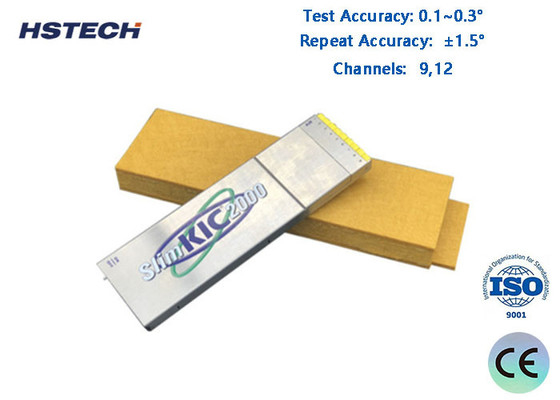

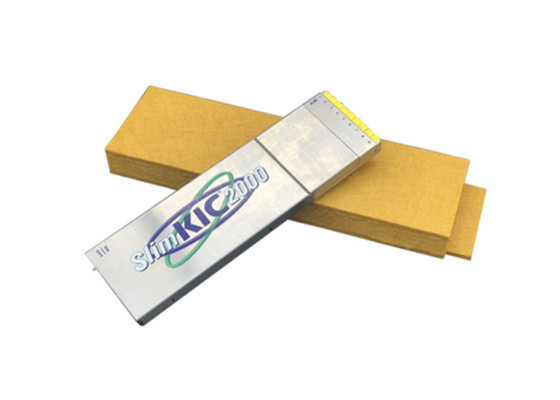

SMT Reflow Oven Wave Soldering Oven Temperature KIC Test Thermal Profiler
Features
1, Small testing error.
2, Guided operation software, easy to learn.
3, Can test the wave and reflow temperature.
4, Intelligent start and stop function.
5, Transmit reception frequency: 433.92MHz.
6, Thermal Process Optimization for Lower Energy Use.
7, Standard SPC charting software include CpK, Help reveal change in the profile over time.
8, Standard Profile Overlay, show different process.
9, Robust and Compact Hardware with 1 year warranty.
10, 9 and 12 Channels (Standard Type K TC connectors).
Specifications
| Accuracy | ±1.2°C |
| Resolution | Variable 0.3 to 0.1°C |
| Internal Operating Temp | 0°C to 105°C |
| Thermocouple Compatibility | Type K, 9 or 12 TCs |
| Temperature Range | -150°C to 1050°C |
| Computer Capability | PC |
| Power Requirements | 9V alkaline battery |
| Thermal Receiver | 433.92 MHz |
| Dimensions | See Temperature Tolerance Chart below for specifications. |

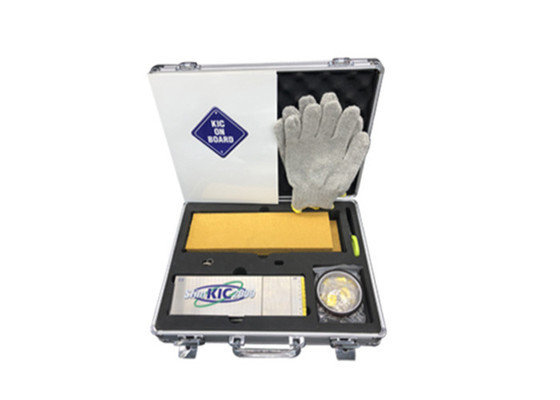

Standard configuration
1, Tester host 1 pc
2, Test insulation housing 1 pc
3, Suitcase 1 pc
4, Temperature test wire 1 pc
5, Data disc 1 pc
6, User's manual
7, Inspection report
8, Data line 1pc
