| Brand Name: | HSTECH |
| Model Number: | HS-310L |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

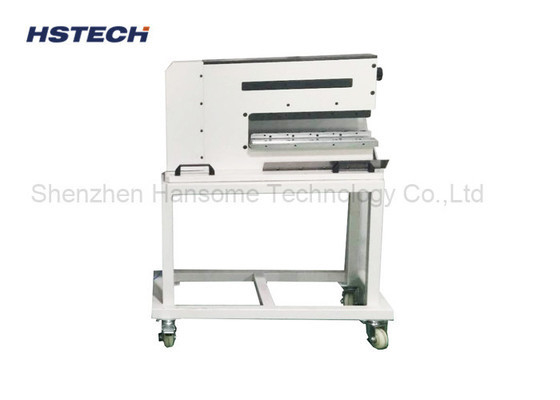

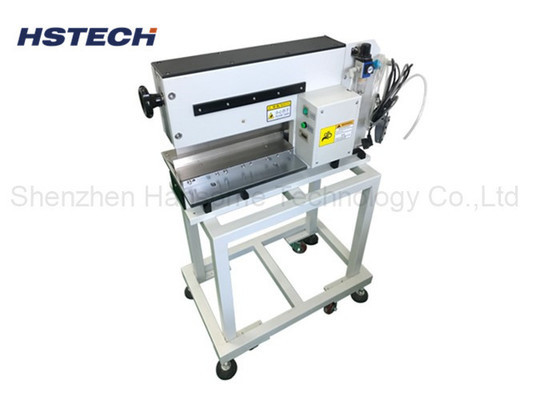

Pneumatic Driver Solenoid Vale Controlled, V-CUT PCB Separator
Introduction:
This machine is used for cutting FR4, Aluminum board, Cooper board, fiber -glass board, adopts high quality and durable linear guillotine blade, driven by the pneumatic,feet step the feet switch to finish the depaneling operation.
The straight knife type separator machines were designed to separate pre-scored panel boards carefully, without bending or tension stress. Even sensitive SMD-components like ceramic capacitors will not be damaged by the separate process,improve products quality
This machine is a powerful machine for separating the V-cut line connectted PCB panels, ultra low cutting force stress, and no glitch.
Features:
1, Used for separating the V-cut line connect PCB boards.
2, Power cutting, no glitch and ultra low force stress.
3, Pneumatic driver ,solenoid vale controlled, high speed.
Specification:
| Product name | PCB depanelizer |
| Model | HS-310L |
| Part-up height | Max 39mm |
| Part-down height | Max 19mm |
| Air supply | 5Kgf/cm |
| Output | 12.5tons(gross) |
| Efficient cutting length | 1-360mm |
| Linear blade size | 360*43.5*6mm |
| PCB thickness | 0.1mm~2.0mm(With v grove) 0.1mm ~1.0mm(Without V grove ) |
| Blade material | Import high quality high speed steel tool |
| Separating speed | 1-300mm/s |
| V-cut thickness | 0.3-3.5mm |
| Air consumption | 200-400(L/min) |
| Machine size | 700*325*400mm |
| Weight | 130kg |
| Suitable board | All V-cut boards |
Application boards:
