| Brand Name: | HSTECH |
| Model Number: | HS-200A |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per week |

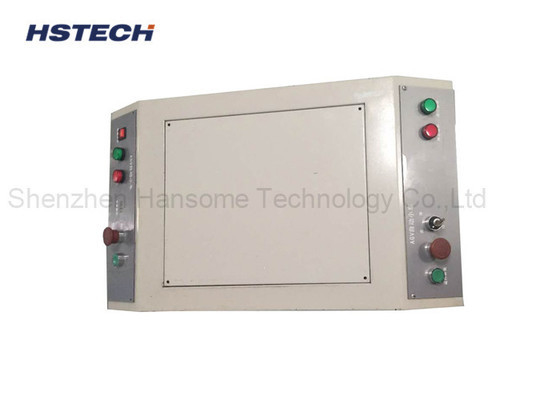

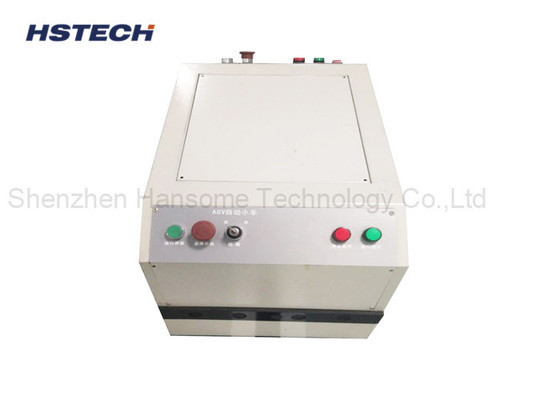

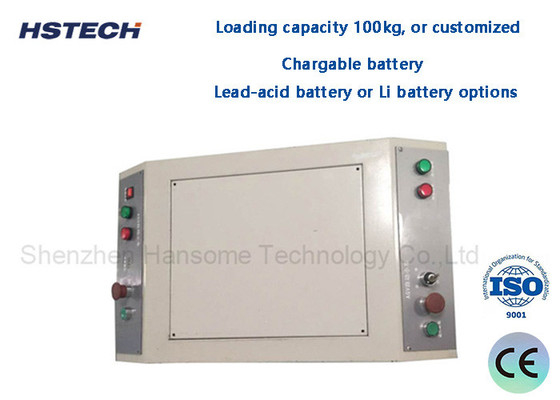

Lead-Acid Battery Or Li Battery Options Chargable Battery Loading Capacity 100kg Automatic Guided Vehicles
Introduction
This AGV car is a economic vehicle, which is powered by battery, the car is moving according to the rubber tape guidance to reach the setted place, also can set the transfer station freely, it's very convenient to transfer the materials, save much labor.
Specification
| Product name | AGV transport car |
| Model | HS-200A |
| Machine dimension | 760*420*350mm |
| Guide Method | rubber strip guidance |
| Driving Method | Dual-wheel differential driving |
| Load Capacity | 100kg(or customized) |
| Driving power | DC24V |
| Moving speed | 0-50m/min |
| Turning radius | min 800mm(car body) |
| Navigation accuracy | ±10mm |
| Continuous working time | >24h |
| Gradeability | 3-5degree |
| Stop accuracy | ±10mm |
| Lifting height | 50mm |
| Battery charge method | Manual charging |
| Safety induction range | ≤3m,can be adjustable |
| Emergency brake distance | <20mm |
| Battery | Li Battery |
| Alarm | light and sound alarm |
Features
1, Loading capacity 100kg, or customized.
2, Chargable battery, when the battery is full, the car can operation the whole day.
3, Lead-acid battery or Li battery options, customers can make the choice, both batter can be charging.
4, The moving direction can set freely, factory can paste the rubber strip freely.
5, Paste the white color strip onto the rubber strip to make the transfer station, car will stop when meet the station, operation need press the button again to order the car continue working.
6, Paste the black strip onto the rubber strip, that means it's a terminal.
