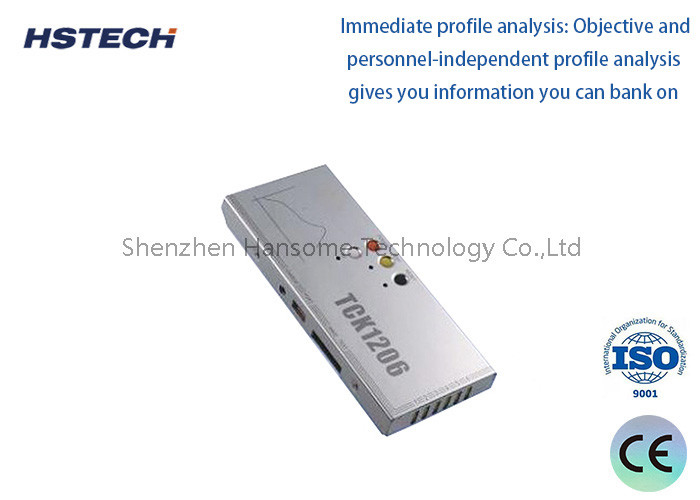

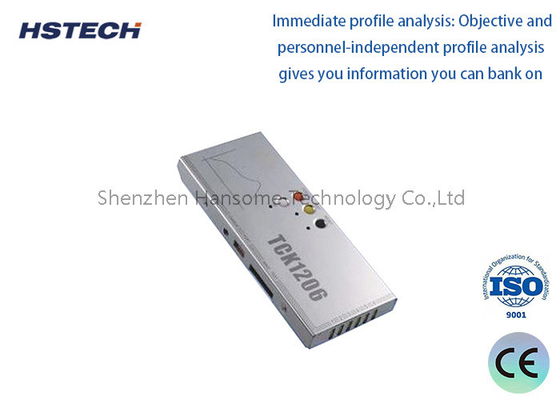

Touch Screen USB/RF TCK Series Thermal Profiler for Electronic Assembly
Standard Composition

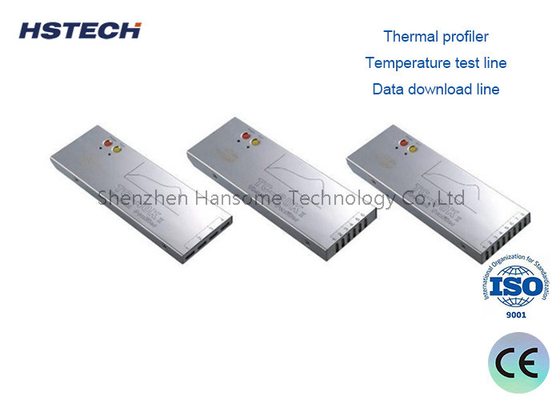

1. Thermal profiler 2. Insulation box
3. Temperature test line 4. Data download line
5. Charger 6. Hi-temp adhesive tape
7. Software CD 8. “+” screwdriver 9. Tweezers
10. Insulated gloves 11. Solder wire
12. Scissors 13. Instrument box
14. User Manual 15. Acceptance Certificate
16. RF Transceiver (Choose Composition)
17. Wave Test System (Choose Composition)
Main Technical Specifications
1,Thermocouple: K-type thermocouple
2,Sampling interval:0.05sec---600sec Set with software
3,Record data:80000 point/channel, Can record 20 sets profile
4,Resolution: 0.1℃
5,Temperature measuring range: 0—1000℃
6,Temperature measuring accuracy: ±1.0℃
7,Total power: ≤120mW
8,Operating voltage:3.6VDC, rechargeable battery
9,Dimensions: 195(L)×82(W)×21(H)mm 195(L)×103(W)×21(H)mm
10, Insulation box:245(L)×100(W)×30(H)mm
10,Start Mode : Manual, specified time or specified temperature
11,Record mode: Monitor/Record
12,Connection mode:USB/RF
13,Software version:Profilermanager 2.0
Product Library Manager
Machine Library Manager
Solder Library Manager
Recipe Library Manager
Data analysis
PWI
Peak Temp,Times of overtop the Temp
Times of between Temp(Reflow)
Slope of between Temp(Reflow)
Slope of between Times(Wave)
