| Brand Name: | HSTECH |
| Model Number: | HS-500LC |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 200 sets per month |
High Stability SMT Machine Parts AC380V 8/10inch Blade 3600rpm Automatic PCB Lead Cutting Machine
Feature
1, Adopts the eagle claw type shrapnel fixture, clamping PCB board automatic push, high stability. Plate feeding speed can be adjusted, the spindle speed is fast, low noise, high precision, fast efficiency.
2, A pair of conveyor chain is equipped in the model in which clamp and deliver the PCBA to the blade turning in high speed for trimming.

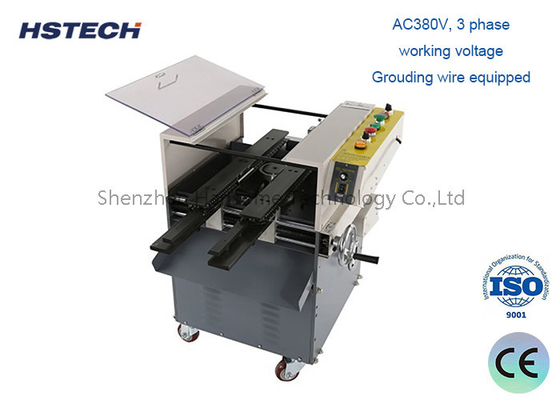

3, AC380V, 3 phase working voltage. Grouding wire equipped.
4, The machine can connect with the automatic soldering machine or AI machine.

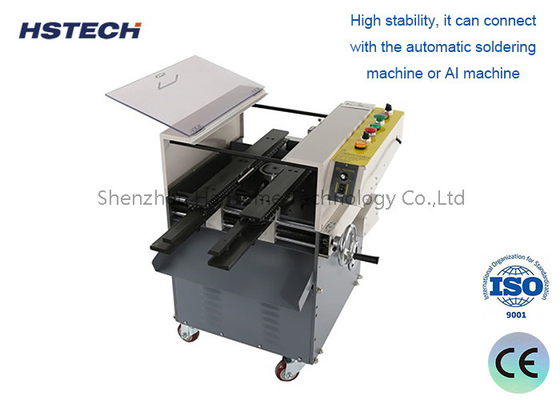

5, High stability, it can connect with the automatic soldering machine or AI machine.
6, With the prevent bending device, to overcome the bending PCB in welding.
7, Input speed can be adjusted, max. speed is 3m/min.
Specification
| Model | HS-500LC |
| Power | AC220, 50/60Hz/380V,50/60Hz |
| Max. PCB size | 400mm(L) x 250mm(W) |
| Main axis speed | 4500/Min |
| Main axis motor | 3/4 Hp |
| Guide rail speed | 0-3 M can be adjustable |
| Min. lead height | 1.0-1.5mm Min |
| Machine Demension | 750*600*860mm(W*D*H) |
| Net Weight | 115KG |
