| Brand Name: | HSTECH |
| Model Number: | HS-F380 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per month |

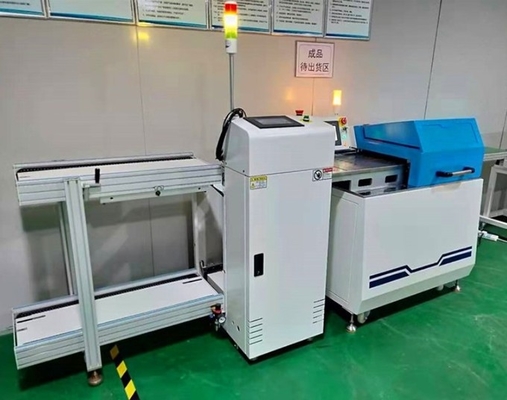

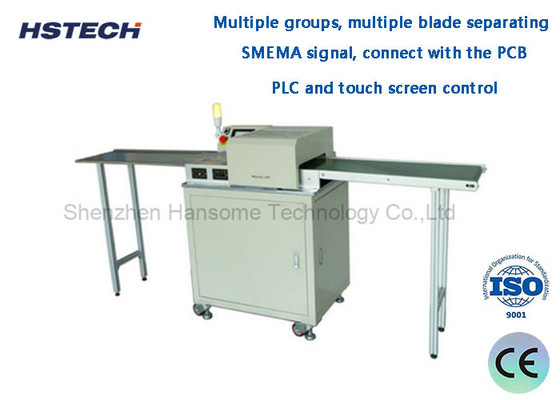

SMT Production Automatic Batch PCB Cutting Equipment With Touch Screen Control
Features
1, Stainless steel machine body, stable and make sure the cutting precision.
2, PLC and touch screen control, operator set the parameters before the separating.
3, By customized the mesotrons to fit the width of each V-cut lines, the mesotrons used for fix the blades, different boards need different mesotrons.
4, How many groups blade need to use depends on the length of the panels, we will choose the suitable goups balde to make sure the board cutting force stress to the lowest, the solution will be make to well protective the panels.
5, The machine suitable for separating the panels at max 360mm width, need customized if longer.
6, Min distance between balde is 3mm, blade thickness is 0.2mm.
7, The blade base can install and unload freely, so it can separating many different size panels by customized different size mesotrons.
8, The machine equipped with nfrared light curtain sensor, high security.
9, This machine designed specially for LED lighting industry, especially for LED tube, whole LED hard strip light, and other strip boards.
10, Very high production ability, 100,000 pcs products production per day,high efficiency and save labor.
11, The machine can add the SMEMA single, can connect the PCB loader to achieve automatic loading.
Specification
| Model | HS-F380 |
| Efficiency cutting width | 0-360mm |
| Blade size | Φ360*Φ43.5*6mm |
| Blade thickness | 0.2mm |
| Min Distance between each blade | 3mm |
| Blade material | Overseas high quality steel |
| Production ability | 100,000pcs per day |
| Voltage | AC110V/220V |
| Power | 200W |
| Machine dimension | 2200*580*1060mm |
| Weight | 160KG |
