| Brand Name: | HSTECH |
| Model Number: | HS-320 |
| MOQ: | 1 sets |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 200 sets per month |

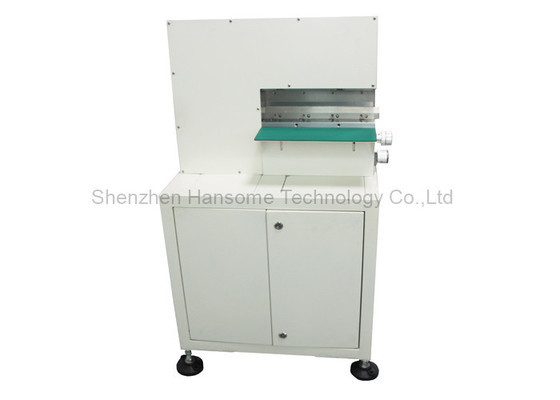

Pneumatic Driven Blade Metal Low Cutting Force Stress V Cut PCB Depanelizer
Application
This machine is a ultra low cutting force stress Pneumatic PCB separator, widely used to all PCBA boards.(with V-groove or without)
Features
1, Double linear blade cutting,suitable for smd thin board,aluminum board,and all kinds of thickness boards,cutting range less than 2mm, no safety problem.

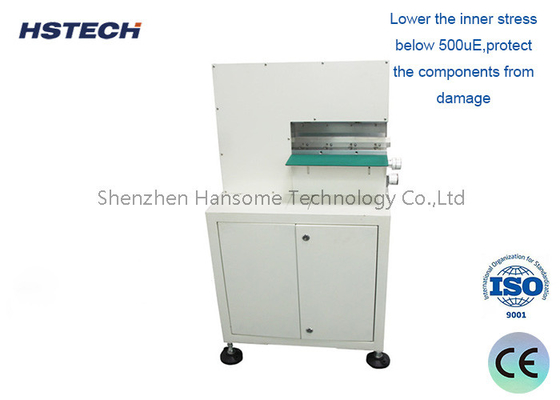

2, Lower the inner stress below 500uE,protect the components from damage.
3, Not friction cutting,no blade metal residue.
4, Pneumatic power, no cutting stress.
5, Both upper and down blade can be adjustable,use the knob to adjust the gap based on the pcb thickness,fit the V-groove thickness.
Specification
| Model | HS-320 |
| Efficient cutting length | 350mm(larger size need customized) |
| Machine size | 650*500*1130mm |
| Air pressure | 0.5~0.7Mpa |
| Upper components height | 39mm(max) |
| Down components height | 19mm(max) |
| Pcb thickness range | 0.1-2.0mm(with V-groove),0.1-1.0mm(without V-groove) |
| Air consumption | 200-400(L/min) |
| Weight | 200kg |
Special design with big room can store many tools
Counter and big size Air Cyliner
Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer. We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of SMT/THT production line board handling equipment.
