| Brand Name: | HSTECH |
| Model Number: | HS-310 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 200sets per month |

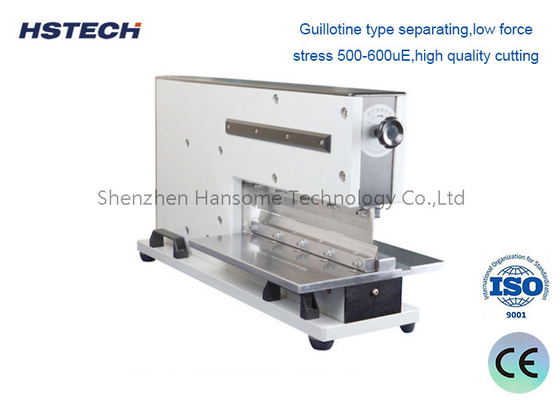

High Power Pneumtic Guillotine V-Cut PCB Separator Depaneling Machine
Introduction
This machine is pneumatically driven and electric control, built in 6 digits counter which is convenient for counting the cuts.
The linear knife type depaneling machines were designed to depanel prescored panelboards carefully, without bending or tension stress.
Even sensitive SMD-components like ceramic capacitors will not be damaged by the depaneling process.
It suitable for all kinds of pcb board,LED aluminum board,COB board, cooper board,etc. It’s widely used, low cutting force stress, few cutting burrs,and the board side is smooth and flat, it’s a best choice for high quality board cutting.
Specification
| Model | HS-310 |
| Power | 10W |
| Air supply | 0.5~0.8Mpa |
| Efficient cutting length | 1-360mm |
| Linear blade size | 360*43.5*6mm |
| Blade material | Import high quality high speed steel tool |
| Separating speed | 1-300mm/s |
| V-cut thickness | 0.3-3.5mm |
| Air consumption | 200-400(L/min) |
| Machine size | 700*325*400mm |
| Weight | 130kg |
| Suitable board | All V-cut board |
Features
1, Guillotine type separating,low force stress 500-600uE,high quality cutting.
2, Suitable for all kinds of material board,also can cutting high hardness,aluminum,and cooper board.
3, Security: small guillotine only available for board feeding,ensure the safety of the operator.
4, Very easy to learn and operating.
5, Durable, using import high quality steel made cutting tool.
