| Brand Name: | HSTECH |
| Model Number: | HS-VM-400 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T,Western Union,MoneyGram |
| Supply Ability: | 100 sets per month |

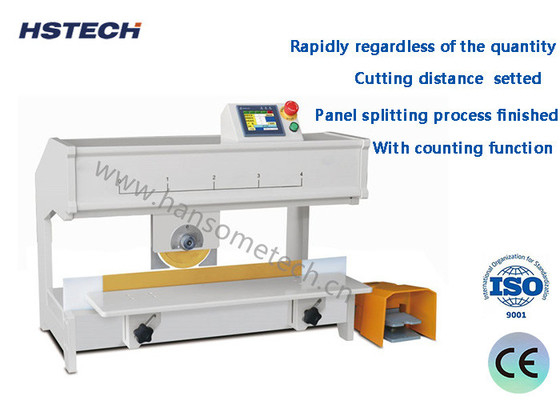

Aluminum Alloy Touch Screen V-cut PCB Separator with MITSUBISHI PLC
Introduction
PCB Separator Machine (also known as PCB Depaneling Machine) is an automated device used to separate panelized PCBs. It is widely used in the electronics manufacturing industry, such as SMT production lines, PCBA assembly, consumer electronics, automotive electronics, etc. It can efficiently and accurately separate multiple PCB units from the entire panel, avoiding stress damage, burrs, component shedding and other problems caused by manual panel separation, and improving production efficiency and product quality.
Features
Specfication
| Model | VM-400 | VM-600 |
| Voltage | 110V/220V,50/60Hz | 110V/220V,50/60Hz |
| Max cutting length | 400mm | 600mm |
| PCB thickness | 0.8~3mm | 0.8~3mm |
| Separation speed | 600mm/sec | 600mm/sec |
| Separation type | Circur and linear blade | Cirlular and linear blade |
| Components height | 0~70mm | 0~70mm |
| working temperature | 30~55℃ | 30~55℃ |
| Machine dimension | 420*520*680mm | 620*720*1680mm |
| Weight | 50kg | 60kg |
Typical applications of PCB splitter
SMT post-process splitter: split the panelized PCB into single boards after SMT patching and reflow soldering.
FPC flexible board cutting: used for splitting flexible circuit boards for mobile phones and wearable devices.
Automotive electronics PCB splitter: ensures the separation of high-reliability PCBs (such as ECU control boards) without damage.
LED light board splitter: prevents damage to LED lamp beads during the splitting process.
