| Brand Name: | HSTECH |
| Model Number: | HS-505 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per month |

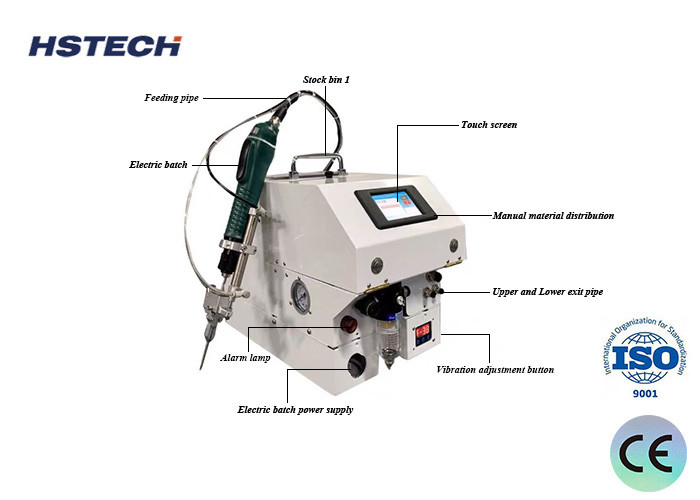

Handheld Screw tightening machine with auto screw feeder system
Application
Applicable to all kinds of electronic products such as toys, mobile phones, telephones, calculators, navigation, dash cam, audio, video and other products screw tightening application.
Features
1. High supply efficiency:Material speed up to 60 per minute, suitable for mass production,
save labor, save cost.
2. Good stability: screw one to send one, eliminate stuck material,Even if bad lead to material jam,
non - professional personnel can quickly solve the problem.
3. Only one hand operation is needed, and the screw lock and payment can be completed with a
gentle press, saving the time of taking and putting screws;
4. Easy to operate -- without professional training, novice can be skilled in operation, long-term operation will not be tired;
Specfication
| Model | HS-505 |
| Screw capacity: | M3*10/3000PCS |
| Efficiency: | 50-80pcs/min |
| Screw feeding speed: | 0.5s/pcs (standard screw) |
| Feeding type: | Blowing |
| Feeding length: | 1- 4Meter |
| Power supply: | AC220V 50HZ |
| Power: | 40W |
| Working pressure: | 0.4Mpa-0.6Mpa |
| Weight: | App 11KG |
| Dimension: | 370*220*280mm |
| Noise | Lower 65 |
Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer. We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of SMT/THT production line board handling equipment.
