| Model Number: | TC-60 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pcs per month |

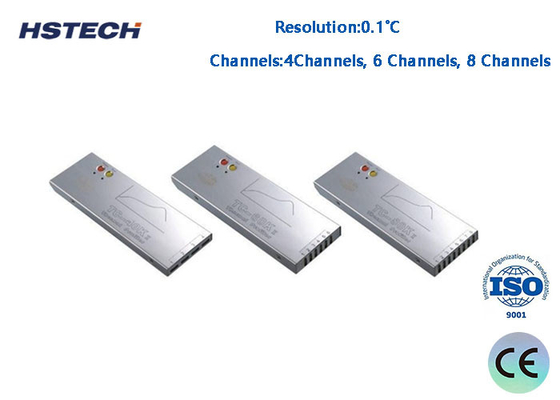

8 Channels K Type Monitor/record Thermal Profile 3.6VDC
Introduction
This brand thermal Profiler is a high quality,Chinese brand thermal profiler, with 4 channels, 6 channels, and 8 channels options.
Standard Composition
1. Thermal profiler
2. Insulation box
3. Temperature test line
4. Data download line
5. Charger
6. Hi-temp adhesive tape
7. Software CD
8. “+” screwdriver
9. Tweezers
10. Insulated gloves
11.Solder wire
12. Scissors
13. Instrument box
14. User Manual
15. Acceptance Certificate
16. Full Original Package, with original Thermal Couples, Protective Shield, Software, etc
Specifications
| Model | TC-60KII |
| Thermal couple | K-type thermal couple |
| Sampling interval | 0.05sec---600sec Set with software |
| Internal Operating Temp. | 0˚C to 85˚C |
| Record mode | 120000point/channel, Can record 256 sets profile |
| Resolution | 0.1℃ |
| Temperature measuring range | 0—600℃ OR 0—1200℃ |
| Temperature measuring accuracy | ±1.0℃ |
| Total power | ≤100mW |
| Operating voltage | 3.6VDC, rechargeable battery |
| Insulation box | 252(L)×88(W)×30(H)mm |
| Start Mode | Manual, specified time or specified temperature |
| Recode mode | RS232/USB |
| Dimension | 208(L)×75(W)×15(H)mm 208(L)×75(W)×19(H)mm |
