| Brand Name: | HSTECH |
| Model Number: | HS-600 |
| MOQ: | 1 set |
| Price: | 9000~12000usd/set |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 30 sets per month |
Data sheet of Pneumatic stencil cleaner HS-600.pdf...

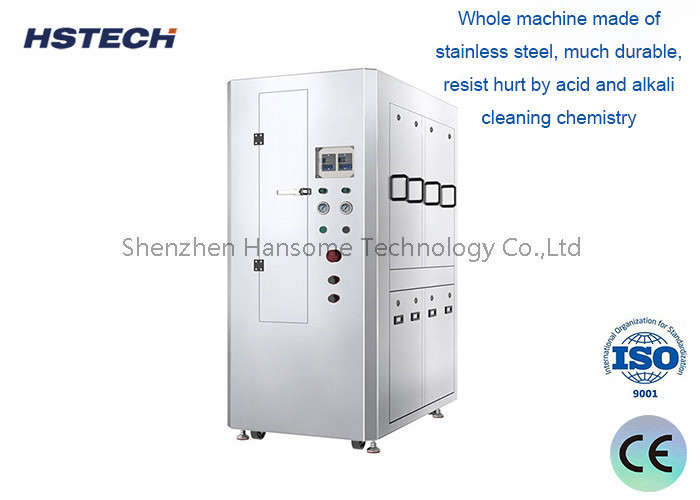

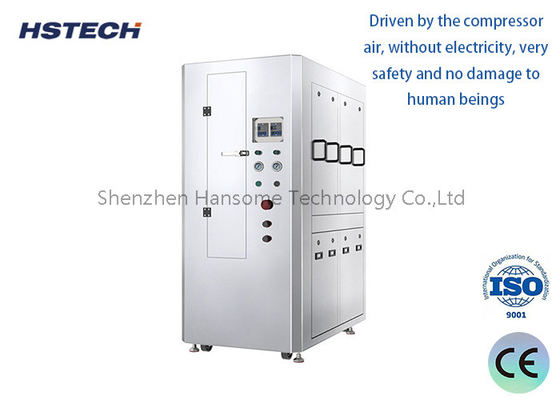

SMT Stencil Cleaning Machine with Counter and Emergency Stop Button
Specification
| Model | HS-600 |
| Power supply | Compressor air |
| Application | stencil,metal mesh, steel mesh,cooper screen,gule screen |
| Stencil size | standard 29inch and below,740*740*40mm |
| Cleaning solvent | Alcohol |
| Cleaning liquid capacity | Max 45L,Min20L |
| Best cleaning fluid using volume | 40L |
| Liquid consumption | 120ml/pc |
| Cleaning method |
Rotary double side pressure injection and high pressure air |
| Cleaning time | 2~4 Min Stencil and Copper Screen |
| Drying time | 2~5 Min |
| External air supply | 0.4Mpa~0.6Mpa |
| Consumer air quantity | 400~600L/Min |
| Air outlet size | φ125*25mm |
| Solder dross filter mode | 3 level filter(10um,5um,1um) |
| Weight | 305kg |
| Machine dimension | 980MM(L)*700MM(W)*1730MM(H) |
Cleaning performance
