| Brand Name: | HSTECH |
| Model Number: | HS-600 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets per month |

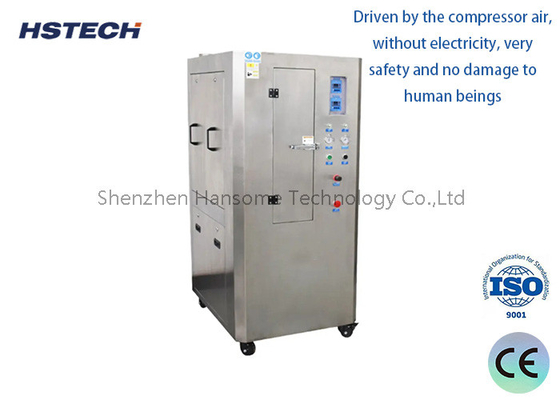

60L SMT Stencil Cleaning Machine with 3 Level Filter System and 0-7KG Pressure
Introduction
This machine used to cleaning stencil, steel mesh, copper screen, gule screen, etc SMT process screens.
Features
1, Full pneumatic power, connect with the air compressor, don't need connect the 200V or 110V voltage.
2, The whole process including cleaning and drying.
3, The machine has the timer to set the show the cleaning and drying time, also has the pressure gauge to show the cleaning and drying pressure.
Specification
| Model | HS-600 |
| Product name | Screen printer stencil cleaner |

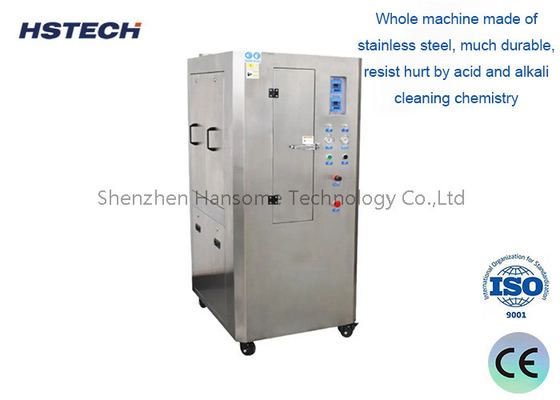

| Machine metarial | Stainless steel, anti-fire, explosion-proof |
| Power | Pneumatic |
| Application | Stencil,cooper screen,gule screen |
| Stencil size | standard 29inch and below |
| Cleaning solvent | Alcohol |
| Cleaning liquid capacity | Max 45L,Min20L |
| Best cleaning fluid using volume | 40L |
| Liquid consumption | 120ml/pc |
| Cleaning method |
Rotary double side pressure injection and high pressure air |
| Cleaning time | 2~4 Min |
| Drying time | 2~5 Min |
| External air supply | 0.4Mpa~0.6Mpa |
| Consumer air quantity | 400~600L/Min |
| Air outlet size | φ125*25mm |
| Solder dross filter mode | 3 level filter(10um,5um,1um) |
| Weight | 250kg |
| Machine dimension | 980MM(L)*700MM(W)*1730MM(H) |
