| Brand Name: | HSTECH |
| Model Number: | HS-SL5331 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per month |
| Model | HS-SL5331 | |

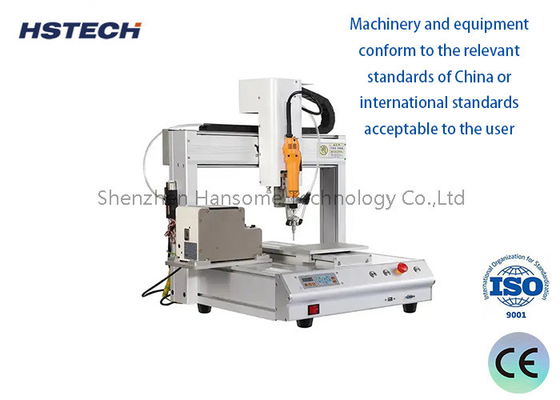

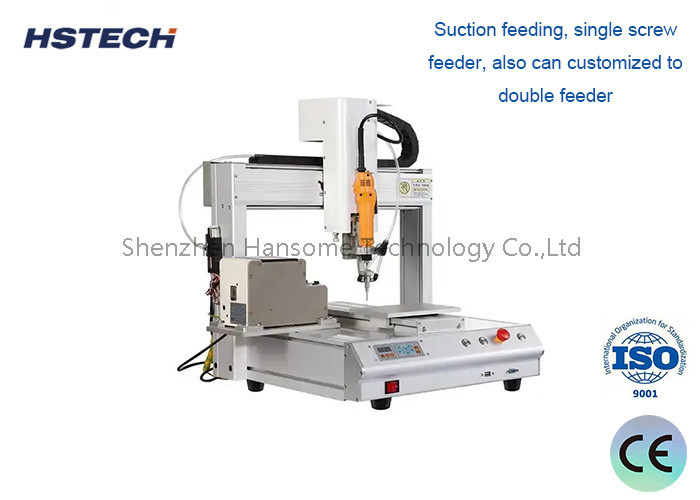

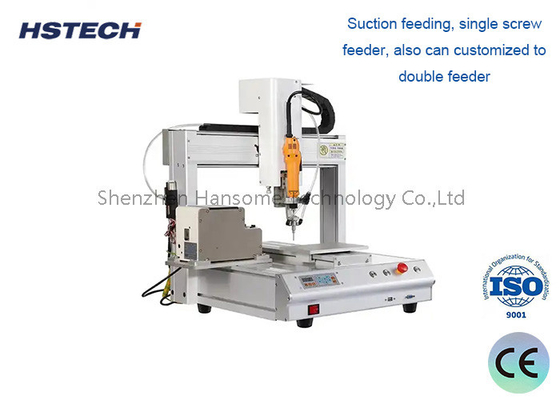

| Production name | 4Axis Automatic Screw Locking Machine | |
| Moving range(X/Y1/Y2/Z) | 500*300*300*100mm | |
| X/Y1/Y2 axis moving speed | Closed loop motor :1-800mm/s | |
| Z axis moving speed | Closed loop motor: 1-300mm/s | |
| X/Y1/Y2 axis max load | Closed loop motor: 5KG | |
| Z axis max load | Closed loop motor: 3KG | |
| Power supply | AC110V/220V, 50/60Hz | |
| Repeat accuracy | ±0.02mm | |
| Document support | CAD CorelDraw | |
| Suitable screws | M1-M6 | |
| Machine dimension | 746*585*800mm | |
| Machine weight | 65kg | |
Main parts brand
1, Motor: Shinano 2, Guide: Hiwin 3, Photoelectric switch: Omron 4, Power supply: Meanwell
We have not only SMT machines and equipment, but also many machine parts.We are supplier of smt machine parts and equipment. such as Feeder,Nozzle,PCB board turnover cart,SMT grease,Solder paste mixer,SMD counter,Laser Sensor,Filter,KIC thermal profiler,Servo Motor and so on.
At Shenzhen Hansome Technology, we strive for excellence in delivering cutting-edge technology and exceptional customer service. We look forward to the opportunity to serve your business needs. Should you have any questions or require further information, please do not hesitate to contact us!
