| Brand Name: | HSTECH |
| Model Number: | HS-100 |
| MOQ: | 1 sets |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 200 sets per month |

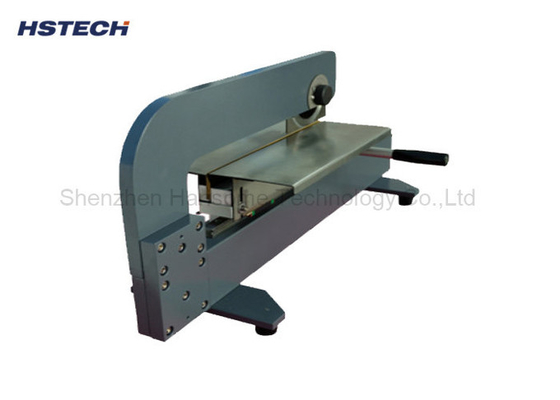

PCB Depaneling Equipment with Circular & Linear Blades for 1-100mm Boards
Introduction

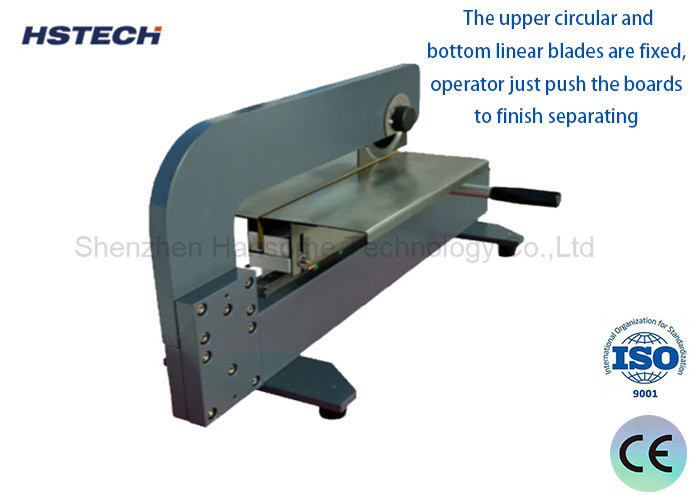

Using upper circular blade and bottom linear blade separating, ensure the board is fixed, lower the force stress, well protected the PCB boards, avoide the damage to the board, especially for boards with components for double side. Don't need air pressure or electricity, fully manual operation, the tool part is equipped with a hand guard to prevent operators from being injured during operation, very safe.
Specification
| Model | HS-100 |
| Product name | Manual hand push PCB Separator |
| Blade material | High speed steel |
| Blade size1 | Ф125mm×3mm(circular blade) |
| Blade size2 | 365mm×43.5mm×6mm(linear blade) |
| PCB thickness | 1/3 board thickness |
| PCB width | 1-100mm |
| PCB length | 1mm-350mm |
| Speed | Manual |
| Air pressure/power | No |
| Suitable boards | Glass fiber, FR-4,FR-1, paper base board |
| Machine size | 425MM*265MM*445MM |
| Weight | 35kg |
