| Brand Name: | HSTECH |
| Model Number: | HS-310 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 200sets per month |
For Thick PCB and Aluminum Board Depaneling Machine with Low Force Stress
Introduction

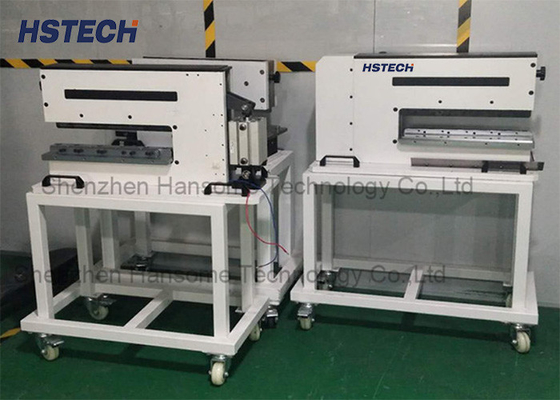

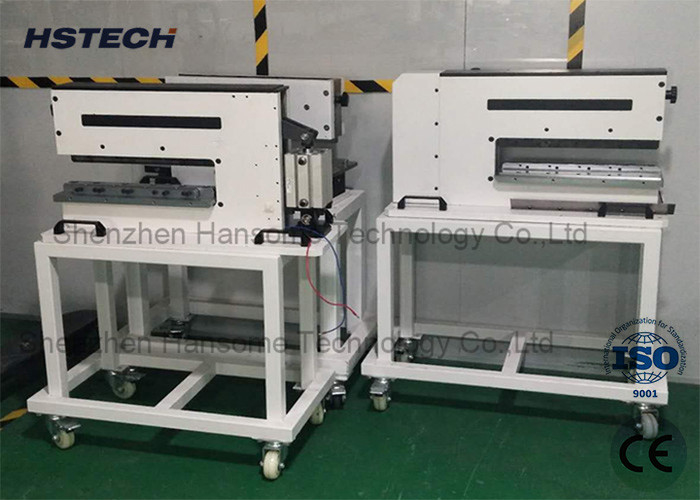

This machine called pneumatic pcb separating machine, also called guillotine type PCB depaneling machine, it's using dual guillotine type blade as the cutting tool, at the same time powered by air pressure to finish the depaneling, it has much better performance than the blade moving pcb separator.
Specification
| Model | HS-310 |
| Power | 10W |
| Air supply | 0.5~0.8Mpa |
| Efficient cutting length | 1-360mm |
| Linear blade size | 360*43.5*6mm |
| Blade material | Import high quality high speed steel tool |
| Separating speed | 1-300mm/s |
| V-cut thickness | 0.3-3.5mm |
| Air consumption | 200-400(L/min) |
| Machine size | 700*325*400mm |
| Weight | 130kg |
| Suitable board | All V-cut boards |
