Hiwin Guide 4Axis Screw Locking Machine which Support 1000 Screw Bits

Brand Name:	HSTECH
Model Number:	HS-SL5331
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Screw Locking Machine

Feeding:

Suction Feeding

Axis:

4axis

Screws Compatible:

M1-M6, Or Customized

Moving Range:

500*300*300*100mm

Material:

Main Aluminum

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Product Description

Hiwin Guide 4Axis Screw Locking Machine which Support 1000 Screw Bits

Introduction:

The screw machine is a 4 axis screw lock machine, with double working station, single head and single feeder, the whole machine composed of a feeding system and a screw driver locking system, the feeding part responsible for screw-arrangement machine, is a relatively simple type of screw arranged in a row for the purpose of improving work efficiency. This screw lock machine is a automation equipment, widely used in the electronics industry. Compatible for screws from M1 to M6, other special screws, also can be customization.

Specification:

Model	HS-SL5331
Production name	4Axis Automatic Screw Locking Machine
Moving range(X/Y1/Y2/Z)	500300300*100mm
X/Y1/Y2 axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y1/Y2 axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M6
Machine dimension	746585800mm
Machine weight	65kg

Main parts brand

1, Motor: Shinano

2, Guide: Hiwin

3, Photoelectric switch: Omron

4, Power supply: Meanwell

Features

1, Suction type feeding, with single screw feeder and single locking head.
2, Desktop and visible operation, can connect the automatic production line.
3, 4 Axis operation, moving range 500*300*300*100mm.
4, Support multiple screw bins in suction mode.

5, Double working station, improve the production efficiency and reduce labor cost.
6, Easy adaptability for M1-M6, just by changing screw guider(Customization available).

7, Easy operation, operator can operate several machines at the same time.

8,The machine can store hundreds of processing files, each file can support 1000 screw bits, you can call it out when you use it.

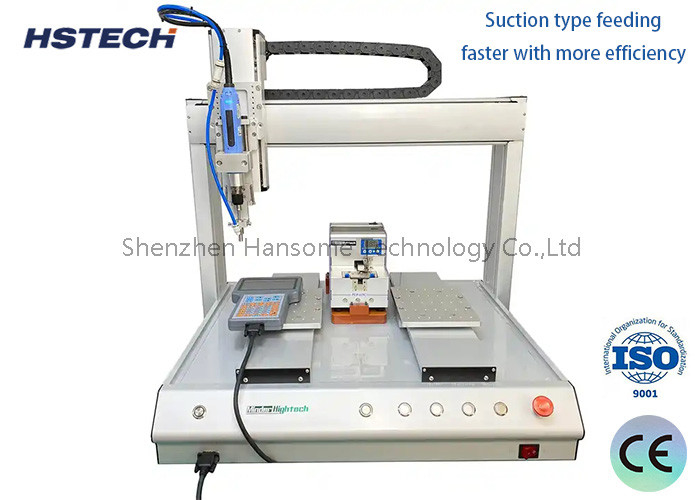

4Axis Automatic Screw Locking Machine, M1-M6 Compatible, Fast & Accurate 0

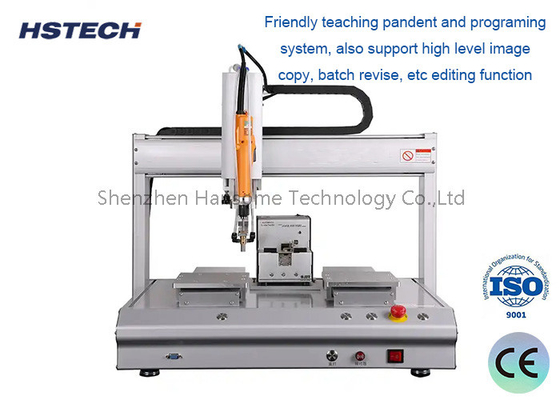

4Axis Automatic Screw Locking Machine, M1-M6 Compatible, Fast & Accurate 1
