| Brand Name: | Samsung |
| Model Number: | J9055069B |
| MOQ: | 1 pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pcs per month |

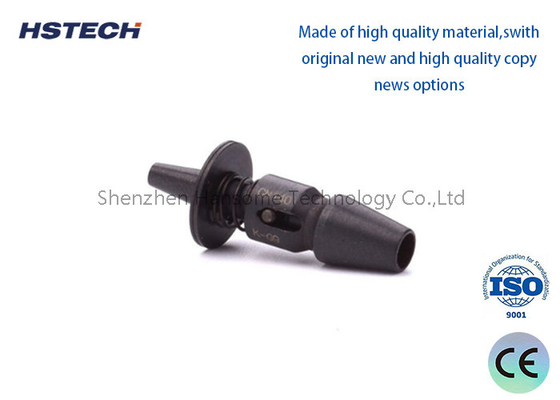

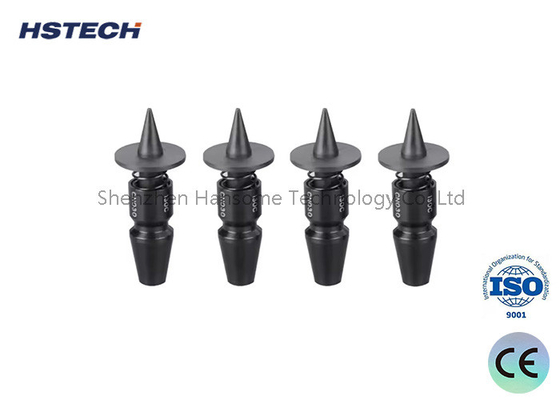

SMT Assembly Line SAMSUNG CP60 PICK UP NOZZLE -Ø0.8/Ø0.3 TN030
Introduction
These Samsuang CP series smt nozzles are used for Samsung CP series pick and place machine, it made of high quality materials, with original new and high quality copy news options. We has large stock of these nozzles, we can delivery very fast.
Sepcification
| Chip mounter brand | Part numer | Diameter |
| SAMSUNG CP60 | J9055069B | Ø0.8/Ø0.3 (TN030) |
| SAMSUNG CP60 | J9055070B | Ø0.75/Ø0.38 (TN045) |
| SAMSUNG CP60 | J9055071B | Ø1.2/Ø0.65 (TN070 |
| SAMSUNG CP60 | J9055072C | Ø2.2/Ø1.4 (TN140) |
| SAMSUNG CP60 | J9055073C | Ø3.6/Ø2.2 (TN220) |
| SAMSUNG CP60 | J9055074C | Ø6.2/Ø4.0 (TN400) |
| SAMSUNG CP45 NEO | J9055133B | Ø0.8/Ø0.28 (CN030) |
| SAMSUNG CP45 NEO | J9055134B | Ø0.75/Ø0.38 (CN040 |
| SAMSUNG CP45 NEO | J9055135B | Ø1.2/Ø0.65 (CN065) |
| SAMSUNG CP45 NEO | J9055138B | Ø2.2/Ø1.4 (CN140) |
SAMSUNG CP45FV
TN03 SAMSUNG CP45 PICK UP NOZZLE -Ø0.8/Ø0.28 (TN03)
J7055246A SAMSUNG CP45 PICK UP NOZZLE -Ø0.75/Ø0.38 (TN04)
J7055267A SAMSUNG CP45 PICK UP NOZZLE -Ø1.2/Ø0.65 (TN65)
J7055131C SAMSUNG CP45 PICK UP NOZZLE -Ø2.2/Ø1.4 (TN14)
J7055132C SAMSUNG CP45 PICK UP NOZZLE -Ø3.6/Ø2.2 (TN22)
J7055133C SAMSUNG CP45 PICK UP NOZZLE -Ø6.2/Ø4.0 (TN40)
J7055135C SAMSUNG CP45 PICK UP NOZZLE -Ø9.0 /Ø7.5 (TN75)
J7055137C SAMSUNG CP45 PICK UP NOZZLE -Ø12.7/Ø11.0 (TN110)
SMT production line equipment
1. Universal SMT machine: Using the program edited by the device to mount components onto designated parts positions, it can mount SOP 28 pin or more (including components that can be mounted by high-speed machines) roll, disc, or tubular packaging components. Its characteristics are high precision and diversity, but its installation speed is inferior to high-speed machines.
2. Reflow soldering: Use SMT solder paste or red glue to set an appropriate temperature curve to complete the soldering action between the solder paste and the part.
3. Unloader: The board is loaded into the magazine through a transfer track.
