| Brand Name: | HSTECH |
| Model Number: | HS-A310 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 200sets per month |

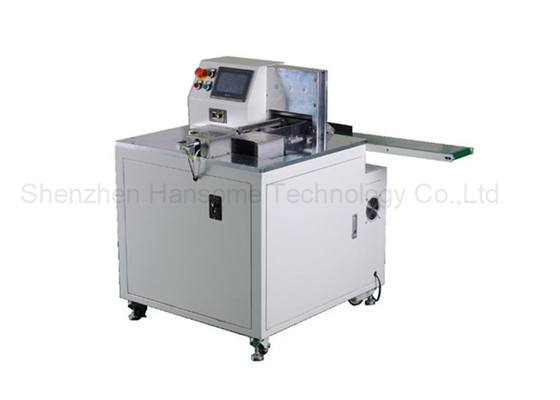

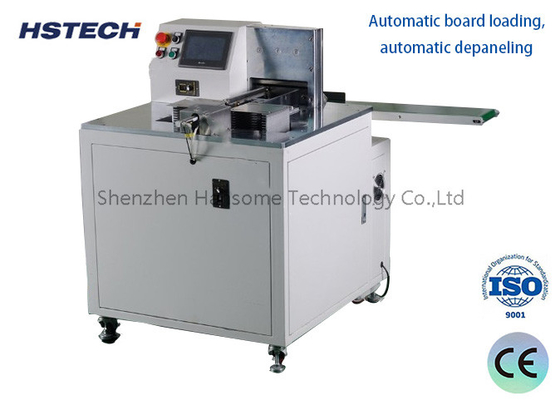

Max 240mm Length Servo Motor Automatic Guillotine Type PCB Depaneling Machine
Introduction
This machine is a guillotine type PCB depaneling machine, but it use the track to achieve automatic PCB board loading instead of the manual board loading, so it's a automatic machine, This machine use the human interface operating system, easy and convenient operation. It's a more efficient guollitine type board depaneling machine.
Features
1, The whole machine body is made of stainless steel, stable and durable.
2, The machine adopt two pcs linear blade, the balde length is 240mm, and board width is 50-150mm.
3, Human interface operating system.
Specification
| Product name | Automatic guillotine PCB depaneling machine |
| Model | HS-A310 |
| Part-up height | Max 35mm |
| Part-down height | Max 20mm |
| Air supply | 5-7kgf/c㎡ |
| Production ability | 1800-4000pcs/H |
| Voltage | AC220V/110V,50/60Hz |
| Separating width | 1-240mm |
| Blade | Two pcs linear guillotine blade |
| Blade adjustment distance | Upper and down 3mm |
| Separating speed | 1-300mm/s |
| V-cut thickness | 0.6-2mm |
| Machine size | 900*800*1100mm |
| Weight | 150kg |
SMT production line equipment
1. Universal SMT machine: Using the program edited by the device to mount components onto designated parts positions, it can mount SOP 28 pin or more (including components that can be mounted by high-speed machines) roll, disc, or tubular packaging components. Its characteristics are high precision and diversity, but its installation speed is inferior to high-speed machines.
2. Reflow soldering: Use SMT solder paste or red glue to set an appropriate temperature curve to complete the soldering action between the solder paste and the part.
3. Unloader: The board is loaded into the magazine through a transfer track.
