Visual CDD Automatic Screw Fastening Machine With Panasonic Servo Motor

Visual CDD Automatic Screw Fastening Machine with Panasonic Servo Motor

Introduction

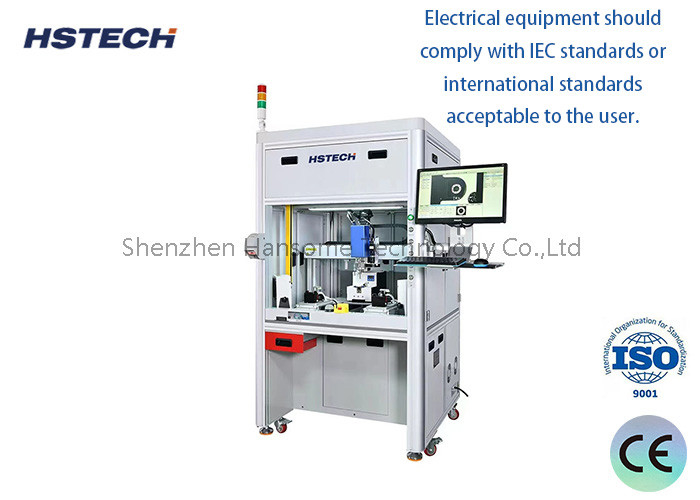

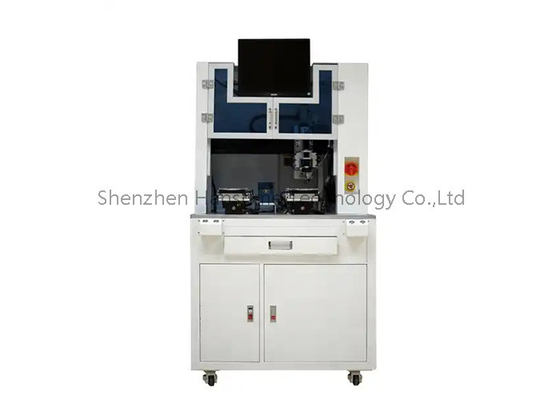

This machine is a high presicion screw locking machine, with CCD positioning, work with the Windows system, which can see all the operation

steps of screws fastening, this machine using HIWIN P-Class KK slide module and Panasonic servo motor, custom type nail feeder, never stuck nail, also use the laser positioning sensor to detect the height of locking. High precision screwing with servo intelligent electric screw driver

All the actions of the fastening equipment are completed by high-performance motion control card

Application

This CCD auto screw locking machine is widely used for locking the casing of smart phone, power adapter, PCB electronic products, batteries, small household applicance, wifi routers, power supply, toy wheels, and other automotive parts and small electronic products.

Main components

Feeding system: Automatic feeding device ensures continuous supply of screws and reduces downtime.
Drive system: electric or pneumatic drive, providing stable torque and speed.
Control system: controlled by PLC or touch screen for easy operation and monitoring.

Application areas
Electronics Manufacturing: Quickly tighten screws when assembling circuit boards to ensure reliable connections.
Automotive industry: used for fast screw tightening of body and interior components to improve assembly efficiency.
Home appliance production: Used in the production lines of washing machines, refrigerators and other home appliances to improve the automation level of the production line.

Advantages

Improve efficiency: significantly increase production speed and reduce production cycle.
Reduce labor costs: Reduce dependence on labor and reduce worker fatigue.
Improve consistency: Ensure consistent tightening quality for each screw, reducing errors caused by human factors.

Specfication
