| Brand Name: | HSTECH |
| Model Number: | HS-505 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per month |
Auto Feeding Screw Machine with 0.5s/pcs Speed for Electronic Products
Application
Applicable to all kinds of electronic products such as toys, mobile phones, telephones, calculators, navigation, dash cam, audio, video and other products screw tightening application.
Multiple screw specifications available MO.9-M6.0
Screwable: cross groove, plus or minus groove, primary groove, cross recess, ricegroove, concave groove plus or minus groove, square groove, straight socket,hexagonal socket, concave groove, straight groove, inner plum blossom,herringbone groove,two-point groove.
Specfication
| Model | HS-505 |
| Screw capacity: | M3*10/3000PCS |
| Efficiency: | 50-80pcs/min |
| Screw feeding speed: | 0.5s/pcs (standard screw) |
| Feeding type: | Blowing |
| Feeding length: | 1- 4Meter |
| Power supply: | AC220V 50HZ |
| Power: | 40W |
| Working pressure: | 0.4Mpa-0.6Mpa |
| Weight: | App 11KG |
| Dimension: | 370*220*280mm |
| Noise | Lower 65 |

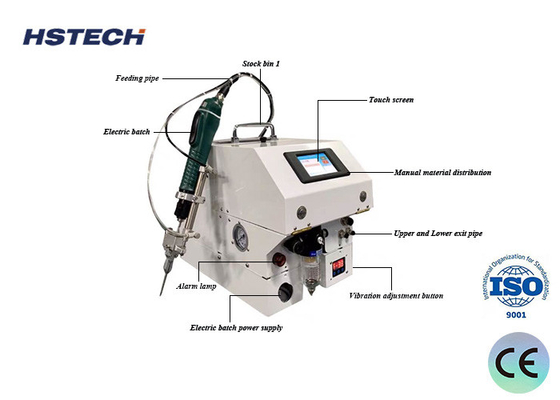

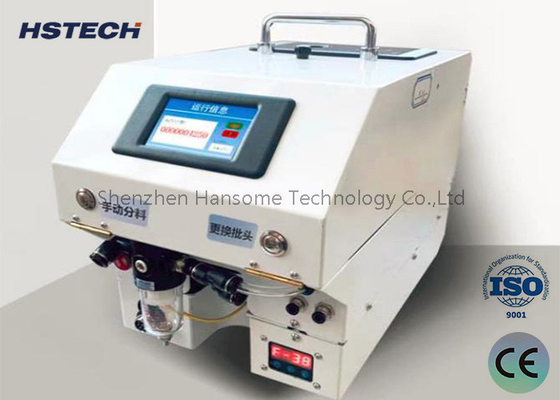

Handheld screw tightening machine details photos
