JUKI Suction SMD Components SMT Pick And Place Nozzle JUKI 502 503 504 505

Suction Smd Components SMT Pick And Place Nozzle JUKI 502 503 504 505

Introduction

JUKI Nozzles are specialized components used in JUKI pick-and-place machines, which are widely utilized in the electronics manufacturing industry for assembling printed circuit boards (PCBs). These nozzles play a crucial role in the precise handling and placement of electronic components during the assembly process.

Key Features

Variety of Designs:
JUKI nozzles come in various shapes and sizes, designed to accommodate different types of components, such as SMD (surface-mounted devices), chips, and odd-shaped components.
Material Quality:
Typically made from high-quality materials like aluminum or stainless steel, ensuring durability and resistance to wear.
Precision Engineering:
Designed for high precision to ensure accurate placement of components on PCB, minimizing the risk of misalignment.
Interchangeability:
Many JUKI nozzles are interchangeable, allowing operators to switch between different nozzles quickly based on the components being used.
Vacuum Capability:
Equipped with vacuum ports to securely hold components during transport and placement.

Applications

PCB Assembly:
Used in JUKI pick-and-place machines for the assembly of various electronic components onto PCBs in high-volume production environments.
Prototyping:
Useful in prototype assembly where flexibility in handling different component types is required.
Repair and Rework:
Nozzles can be employed in rework stations to assist in the precise placement of components during repair processes.

Benefits

Increased Efficiency:
High-speed operation and accurate placement lead to improved production efficiency, reducing cycle times.
Enhanced Flexibility:
The variety of nozzle types allows for handling a wide range of component sizes and shapes, making assembly lines adaptable to different products.
Reduced Labor Costs:
Automation of the assembly process minimizes the need for manual labor, which can reduce costs and improve consistency in production.
Improved Quality Control:
Precision placement of components leads to higher quality assemblies with fewer defects, enhancing overall product reliability.

JUKI Nozzle Series:

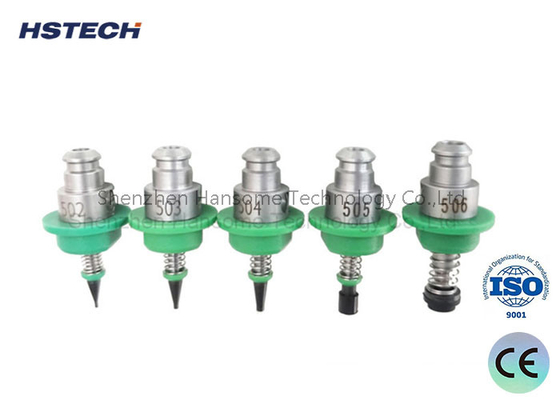

E36087290A0 JUKI NOZZLE 500 ASSY.1.0×0.5
E36007290A0 JUKI NOZZLE 501 ASSEMBLY 0.7×0.4
E36017290A0 JUKI NOZZLE 502 ASSEMBLY O 0.7/O 0.4
E36027290A0 JUKI NOZZLE 503 ASSEMBLY O 1.0/O 0.6
E36037290A0 JUKI NOZZLE 504 ASSEMBLY O 1.6/O 1.0
E36047290A0 JUKI NOZZLE 505 ASSEMBLY O 3.5/O 1.7
E36057290A0 JUKI NOZZLE 506 ASSEMBLY O 5.0/O 3.2
E36067290A0 JUKI NOZZLE 507 ASSEMBLY O 8.5/O 5.0
E36077290A0 JUKI NOZZLE 508 ASSEMBLY O 9.5/O 8.0
E36177290A0 JUKI NOZZLE 512
E36187290A0 JUKI NOZZLE 513
E36197290A0 JUKI NOZZLE 514
E36207290A0 JUKI NOZZLE 515
E36217290A0 JUKI NOZZLE 516
E36227290A0 JUKI NOZZLE 517
E36227290A0 JUKI NOZZLE 518
E36227290A0 JUKI NOZZLE 519
E36227290A0 JUKI NOZZLE 520
E36227290A0 JUKI NOZZLE 521
E36227290A0 JUKI NOZZLE 522
E36227290A0 JUKI NOZZLE 523
E36227290A0 JUKI NOZZLE 524
E36227290A0 JUKI NOZZLE 525
E36227290A0 JUKI NOZZLE 526
E36227290A0 JUKI NOZZLE 527
E36227290A0 JUKI NOZZLE 528
E36227290A0 JUKI NOZZLE 529
E36227290A0 JUKI NOZZLE 530
E36227290A0 JUKI NOZZLE 531
E36227290A0 JUKI NOZZLE 532
E36227290A0 JUKI NOZZLE 533
E36227290A0 JUKI NOZZLE 534
E36227290A0 JUKI NOZZLE 535
E36237290A0 JUKI NOZZLE 800
E36247290A0 JUKI NOZZLE 801
E36257290A0 JUKI NOZZLE 802
E36267290A0 JUKI NOZZLE 803
EG350729M01 JUKI NOZZLE 804
