| Brand Name: | HSTECH |
| Model Number: | DZ-400T |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets per month |
Double Sealing Single Chamber Vacuum Packing machine with Air Pressure
Introduction
This machine used to vacuum packing to avoid moisture and oxidation, it widely used to pack Semiconductor, IC reel, mobile phone display, touch screen,PCB, FPCB, and other electronic products. Also used in food industry.
Features
1. Double sealing rod, much more efficient than single sealing mode.
2. The sealed chamber is larger and can be used to package some large-sized bags.
3. Vacuum packaged items are in a sealed state to prevent oxidation, mold, insect infestation, and moisture, thereby extending the product's storage period.

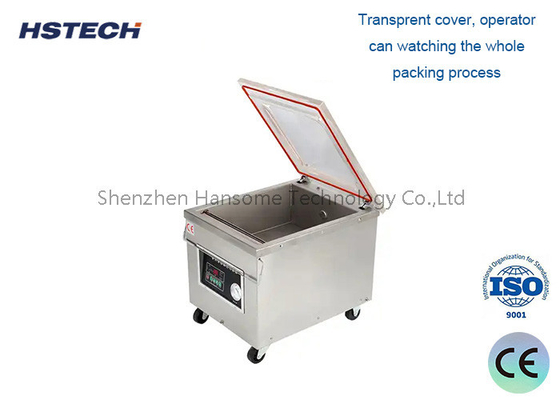

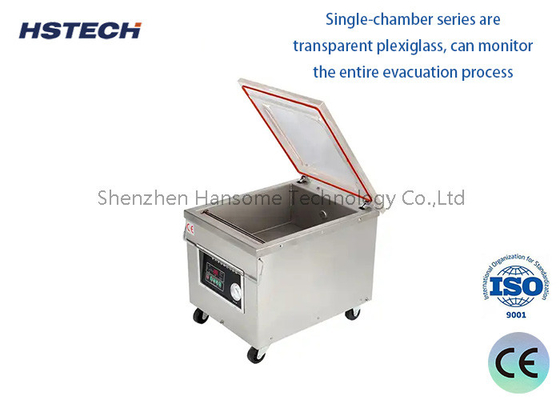

4. The transport lid allows the operator to observe the entire packaging process.
5. Fast packaging time, can be packaged multiple times per minute.
6. Suitable for multiple industries, small size, and easy to use.
Specification
| Model | DZ-260T | DZ-300T | DZ-400T |
| Chamber size | 380×280×55mm | 380×320×55mm | 440×420×75mm |
| Sealing size | 260×330mm(single sealing) | 330x320mm(single sealing) | 400×310mm(double sealing) |
| Air pressure | -0.1Mpa | -0.1Mpa | -0.1Mpa |
| Capacity | 1-3 times per min | 2-4 times per min | 3-6 times per min |
| Voltage | 1phase 110V/220V, 50/60Hz | 1phase 110V/220V, 50/60Hz | 1phase 110V/220V, 50/60Hz |
| Power | 0.75KW | 1.0KW | 1.5KW |
| Machine size | 500×340×370mm | 500×380×370mm | 540×490×530mm |
| Weight | 40kg | 50kg | 80kg |
Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer. We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of SMT/THT production line board handling equipment.
