| Brand Name: | HSTECH |
| Model Number: | HS-300 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per week |
PCB Depaneling Equipment, High Speed Steel Tool, Circular & Linear Blades
Introduction

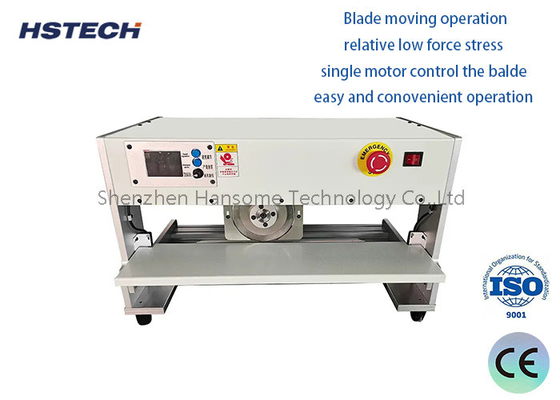

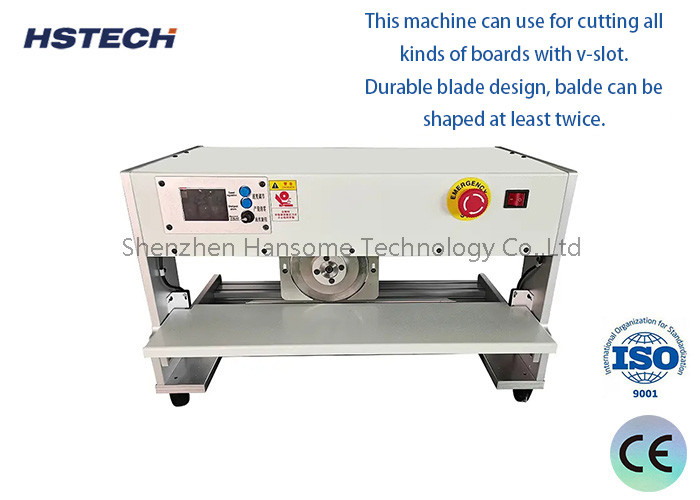

This machine(HS-300) is the blade moving PCB separator, using upper circular and down linear blade design,before cutting, put the v-groove onto the linear blade,the upper circular blade moving to finish spearating, the force stress is relative low, the board don't need move will protect the components on the board, avoid damaging.
Features
1, It can cut rapidly regardless of the quantity, very economic.
2, Cutting distance setted by touch screen to align V slot in PCB,which makes the cutting stroke accurate without error.
3, Panel splitting process finished by using both moving blade and stationary blade,which can reduce stress and avoide fracturing of welding spot.
4, PCB Stays still during panel splitting,blade slip forward and backward, ensure the quality.
5, Compare with manual operation,it can reduce stress that will damage welding spot on PCB,improve working efficiency and product quality.
6, The cutting distance can be set freely,range from 1 to 100m,which can better fulfill customer's demands and improve the working efficiency.
7, The starting cutting position can be set freely, which can ensure the long lifespan.
8, This machine equipped with counting function, can facilitates the data after the production.
Specification
| Model | HS-300 | |||
| Voltage | 110V/220V(optional) | |||
| Power | 100W | |||
| Efficient cutting length | 5-360mm | |||
| Blade size | Circular blade φ125*3mm, Linear blade 360*45*6mm | |||
| Blade material | Import high quality high speed steel tool | |||
| Separating speed | 300mm/s | |||
| V-cut thickness | 1/3 of the board | |||
| Separating width | Best 1-200mm | |||
| Machine size | 620*320*450mm | |||
| Weight | 50kg | |||
