| Brand Name: | HSTECH |
| Model Number: | VS-600WA |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets per month |

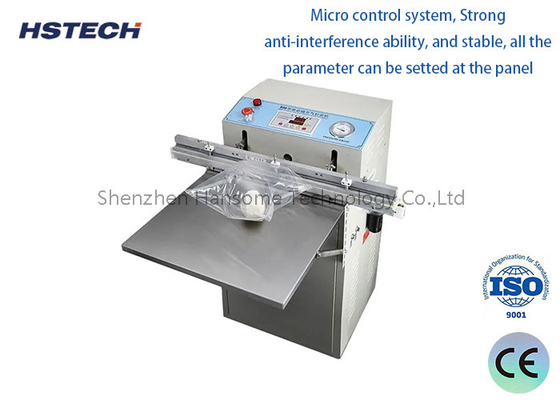

VS-600WA Vacuum Packing System w/ 5~10mm Sealing Line Width & 110V/220V Power Supply
Introduction
The vacuum packaging machine integrates various functions of vacuum, sealing and inflation. The sealing adopts air pressure type,which completely changes the phenomenon that the sealing of traditional packaging is not firm. The vacuum is very fast and is done in just 2-3 seconds. Not limited by the shape and size of the product, especially large or oddly shaped objects can be vacuum packed.
Features
1, With air pressure supply, also we have another option,can customized the machine to use a internal air compressor, then don't need external air pressure.

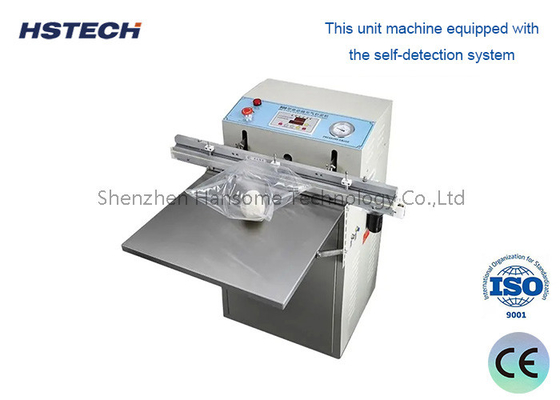

2, This unit machine equipped with the self-detection system, the machine will alarm automatically when power on, power off or during the operation.
3, It's a standard vacuum packer, max sealing size is 600mm, working platform size is 400x450mm, especially suitable for packing IC, electronic components, PCB board, optoelectronic parts, hardware products, like LED lamp, PCB, FPC, taped IC, Reel packaged IC, and plastic packaged or trays packaged smart phone screen, tablet screen, touch screen, wire, connectors.
Specification
| Model | VS-600WA |
| Packing capacity | 3-10 bags/min( based on product size) |
| Sealing size | W600*W5~10mm(sealing line width, customized) |
| Max packing size | L(unlimited)*W600*H(unlimited) |
| Machine size | 670*460*1050mm |
| Platform size | 400*450mm(can customized) |
| Power supply | 110V/220V, 50/60Hz |
| Power | 1.5KW |
| Air pressure | 5-8kg(also can customized to no air pressure, make internal air compressor) |
| Ultimate vacuum | -o.1Mpa |
| Weight | 80kg |
Scope of application: Suitable for electronic products, such as moisture-proof, anti-oxidative and discoloration of semi-alien,wafer, IC, metal processing parts, cloth, cotton and wool products, etc., vacuum packaging, reducing packaging volume, saving your logistics costs, for food , Fruits, vegetables, seafood and other products are added with nitrogen to keep fresh, original taste, and shock-proof.
