| Brand Name: | HSTECH |
| Model Number: | HS-310 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 200sets per month |

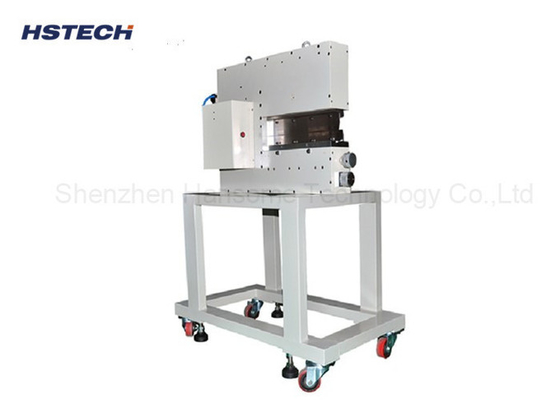

Adjustable Blade Distance PCB Depaneling Equipment with Ultra Low Cutting Force Stress
Introduction
This machine powered by air pressure and electricity combined, using double linear blade cutting, suitable for high requirement PCB depaneling,
it has ultra low cutting force stress, well protected boards without bent, also the cutting surface is smooth and flat, without glitch. At the same, the
machine equipped with a counter which can counting the separating times.
Features
1. PCB does not move during the cutting process, and the round knife slips to ensure that the electronic components of the substrate are not damaged due to movement.
2. the speed of four selectable board is set by the control board twist, the travel of board can be set freely and LCD display.

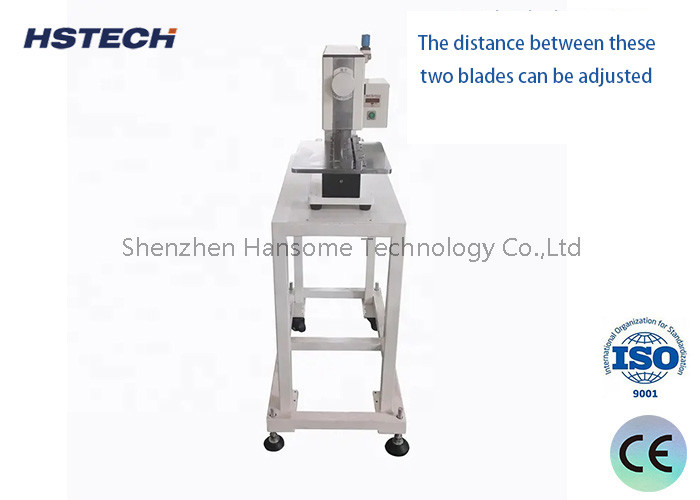

3. according to the depth of V slot and tool loss, the distance between the upper round knife and the lower straight knife can be accurately adjusted.
4. can solve the parts across the V slot to achieve the board.
5. the internal stress generated when cutting plate is reduced to avoid tin crack.
6. Three groups of safety photoelectric eye and upper round knife safety protection staff.
7. the height of the front and back table can be adjusted in parallel, and the back table can be tilted to make the substrate slip away.
Specification
| Model | HS-310 |
| Power | Penaumatic and electricity |
| Air supply | 0.5~0.8Mpa |
| Efficient cutting length | 1-360mm |
| Linear blade size | 360*43.5*6mm |
| Blade material | Import high quality high speed steel tool |
| Separating speed | 1-300mm/s |
| V-cut thickness | 0.3-3.5mm |
| Air consumption | 200-400(L/min) |
| Machine size | 700*325*400mm |
| Weight | 130kg |
| Suitable board | All V-cut board |
