Precision Screw Fastening Machine for CAD and CorelDraw Compatibility

Brand Name:	HSTECH
Model Number:	HS-SL551S
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Desktop Screw Tightening Robot

Feeding:

Pick-up Screw

Axis:

3 Axis

Screws:

M1-M6

Moving Range:

500*500*100mm

Material:

Main Aluminum

Port:

Shenzhen

Oem:

Yes

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Product Description

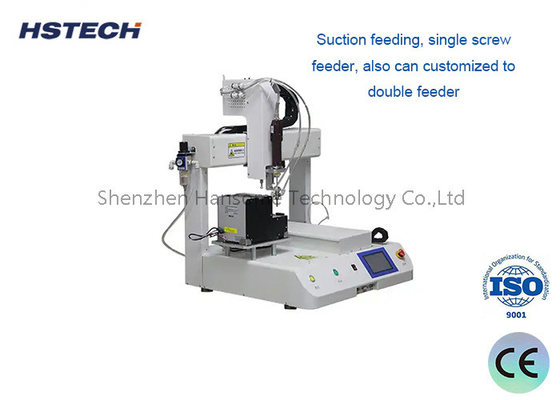

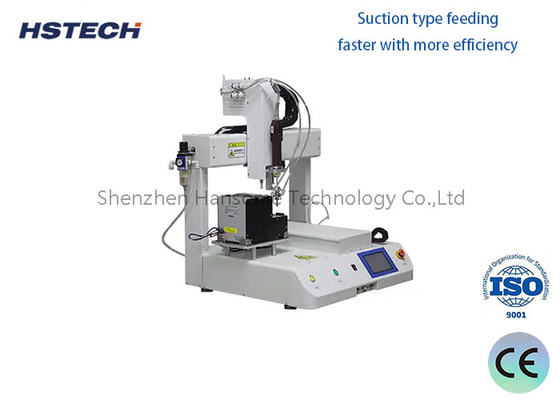

Desktop Screw Tightening Robot single slide screw locking machine

Introduction

The screw machine is composed of a feeding system and a lock-locking system, where in the feeding part, also called a screw-arrangement machine or a screw feeder, is a relatively simple type of screw arranged in a row for the purpose of improving work efficiency. It's a automation equipment, widely used in the electronics industry. It compatible for screws from M1 to M6.

Specification

Model	HS-SL551S	HS-SL661S
Production name	Automatic Screw Locking Machine
Moving range(X/Y/Z)	500500100mm	600600100mm
X/Y axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M5
Machine dimension	746785800mm	845885800mm
Machine weight	50kg	55kg

Main parts brand

1, Motor: Shinano

2, Guide: Hiwin

3, Photoelectric switch: Omron

4, Power supply: Meanwell

Features

1.Automatic Programming
Coordinate automatic locking screw machine can be based on the product screw hole position, write your own program and can store multiple sets of programmes, convenient for daily production call, strong flexibility.

2.Automatic feeding
Configuration of blowing automatic nail feeder, to achieve the automatic delivery of multiple screws at a time, no need to pick up and put down, more time.

3.Automatic locking screw machine, by the equipment in accordance with the set position to perform locking action, can avoid manual misoperation.

4.Touch display
Configuration of touch screen, production data and equipment status can be displayed in real time, and can be debugging equipment.

5.Convenient operation
Strictly according to the product characteristics of the design programme dual platform can be operated by one person to operate more than one piece of equipment to operate easily.

6.High Accuracy
X-axis and Z-axis are driven by servo motors + ball screws for more accurate coordinate positioning and high locking standards.
