| Brand Name: | HSTECH |
| Model Number: | HS-SL551S |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per month |
| Model | HS-SL551S | HS-SL661S |

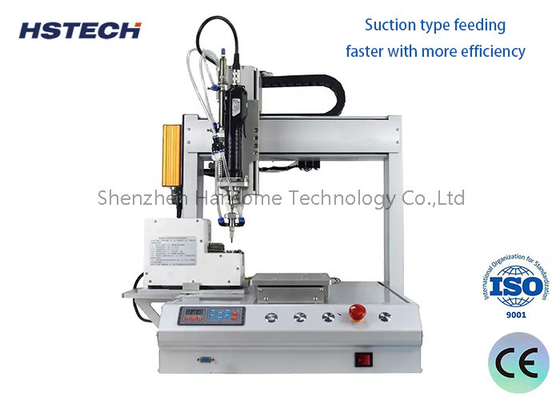

| Production name | Automatic Screw Locking Machine | |
| Moving range(X/Y/Z) | 500*500*100mm | 600*600*100mm |
| X/Y axis moving speed | Closed loop motor :1-800mm/s | |
| Z axis moving speed | Closed loop motor: 1-300mm/s | |
| X/Y axis max load | Closed loop motor: 5KG | |
| Z axis max load | Closed loop motor: 3KG | |
| Power supply | AC110V/220V, 50/60Hz | |
| Repeat accuracy | ±0.02mm | |
| Document support | CAD CorelDraw | |
| Suitable screws | M1-M5 | |
| Machine dimension | 746*785*800mm | 845*885*800mm |
| Machine weight | 50kg | 55kg |
Main parts brand
1, Motor: Shinano
2, Guide: Hiwin
3, Photoelectric switch: Omron
4, Power supply: Meanwell
Features
Handheld locking screw machine performance shortcomings
1, the screws below M2 can not be completed;.
2. Screws with spacers can not be completed with a hand-held automatic screwdriver;
3. Screw tooth length is less than or equal to the neck of the screw head, can not be completed.
4. Screw countersink holes more than 2MM, depending on the length of the screw.
5.10 torque of screws above the selection of wind batch, wind batch heavy, manual play will be very tired.
