| Brand Name: | HSTECH |
| Model Number: | HS-SL5331 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per month |
| Model | HS-SL5331 | |

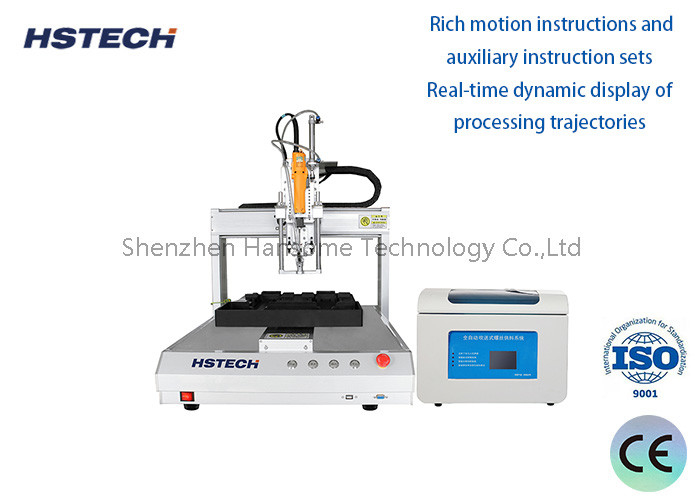

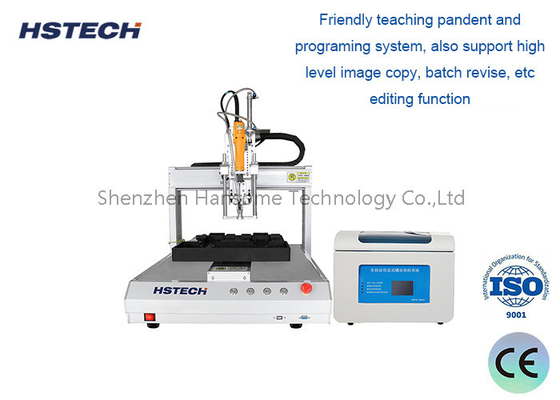

| Production name | 4Axis Automatic Screw Locking Machine | |
| Moving range(X/Y1/Y2/Z) | 500*300*300*100mm | |
| X/Y1/Y2 axis moving speed | Closed loop motor :1-800mm/s | |
| Z axis moving speed | Closed loop motor: 1-300mm/s | |
| X/Y1/Y2 axis max load | Closed loop motor: 5KG | |
| Z axis max load | Closed loop motor: 3KG | |
| Power supply | AC110V/220V, 50/60Hz | |
| Repeat accuracy | ±0.02mm | |
| Document support | CAD CorelDraw | |
| Suitable screws | M1-M6 | |
| Machine dimension | 746*585*800mm | |
| Machine weight | 65kg | |
Main parts brand
1, Motor: Shinano 2, Guide: Hiwin 3, Photoelectric switch: Omron 4, Power supply: Meanwell
Automatic locking screw machine performance advantages
1. Screws below M2 can be completed by vacuum suction or magnetic suction conveyor.
2. Screws with pads can be completed with automatic locking screw machine.
3. Screw tooth length is less than or equal to the screw head neck, you can choose the vacuum suction or magnetic suction conveyor to complete.
4.10 torque screws above the use of wind batch, the machine automatically locking.
5. Only manual loading and unloading, automatic locking screw machine to complete the process of automatic locking screws.
