| Brand Name: | HSTECH |
| Model Number: | HS-SL5331 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per month |

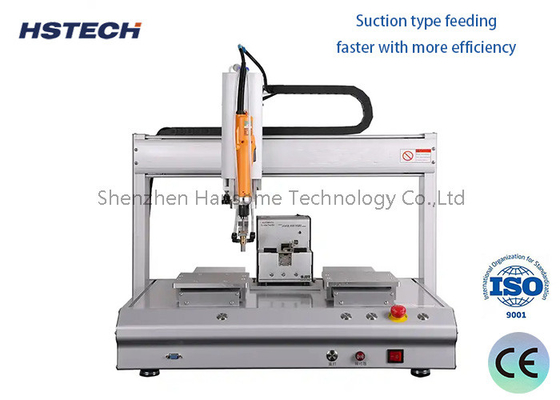

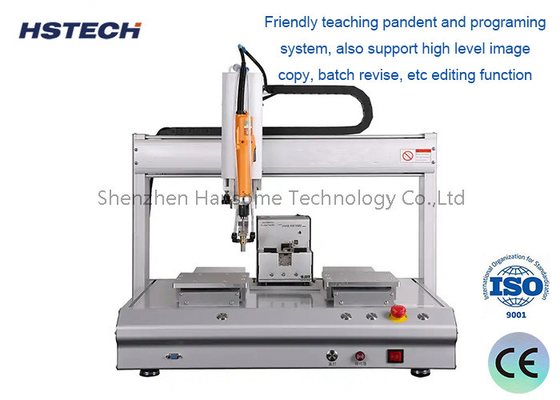

Desktop 4Axis Screw Fastening Machine, Support CAD Documents Input
Introduction
Automatic lock screw machine is an automated equipment that can replace manual screw locking.
As the production cost of enterprises is getting higher and higher, labor costs are rising, and automatic screw machines will replace most of the screw locking stations, which are simple to operate, convenient to use, and efficient.
Features
1.. Simple operation, easy to use.
2. More intelligent, practical wide, without professionals to debug.
3, This equipment is mainly used for lock the screws size from M1-M5.
4, Support CAD documents input.
5, this Automatic screw feeding machine available for similar size screw length is ±5 mm.
Specfication
| Model | HS-SL5331 |
| Voltage | AC110V/220V,50/60Hz,Meanwell brand |
| X/Y1/Y2/Z working range | 500/300/300/100mm |
| XYZ speed | Max XY:600mm/s,Z:300mm/s |
| Y platform | 190*150mm |
| Repeat accuracy | 0.02mm |
| Motor | Stepper motor(Shinano Kenshi brand) |
| Driven system | Timing blet for X/Y, Z axis screw |
| Document support | CAD,CorelDRAW |
| Loading capacity | X/Y:10kg,Z:5kg |
| Linear Guide | HIWIN(Taiwan brand) |
| Photoelectric switch | (Germany brand) |
| Cylinder | AirTAC |
| Suitable screws | M1 - M5 |
| Machine size | 720*685*597mm |
| Gross weight | 75kg |
