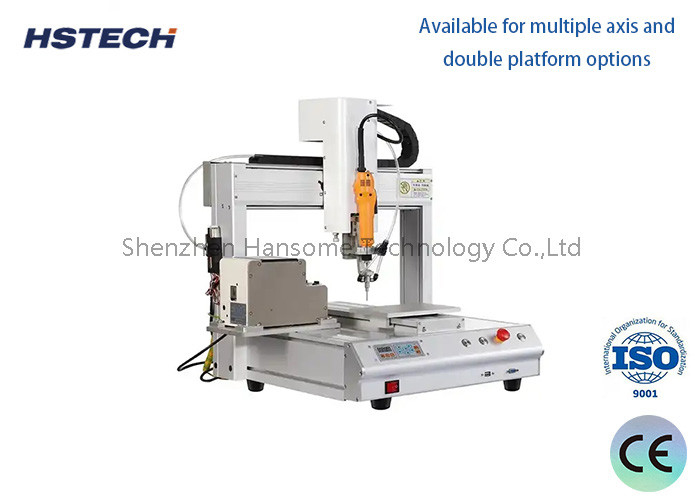

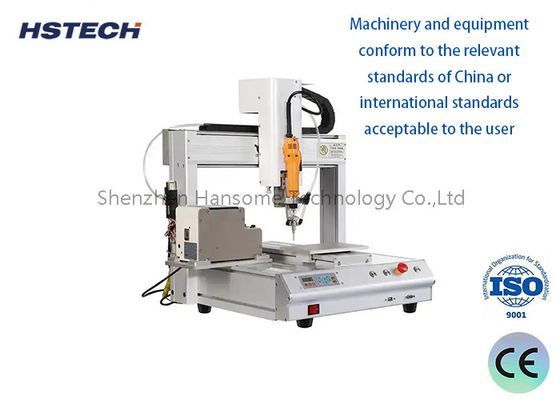

Desktop Screw Tightening Robot single slide screw locking machine

Brand Name:	HSTECH
Model Number:	HS-SL551S
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Desktop Screw Tightening Robot

Feeding:

Pick-up Screw

Axis:

3 Axis

Screws:

M1-M6

Moving Range:

500*500*100mm

Material:

Main Aluminum

Port:

Shenzhen

Oem:

Yes

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Product Description

Desktop Screw Tightening Robot single slide screw locking machine

Introduction

The screw machine is composed of a feeding system and a lock-locking system, where in the feeding part, also called a screw-arrangement machine or a screw feeder, is a relatively simple type of screw arranged in a row for the purpose of improving work efficiency. It's a automation equipment, widely used in the electronics industry. It compatible for screws from M1 to M6.

Specification

Model	HS-SL551S	HS-SL661S
Production name	Automatic Screw Locking Machine
Moving range(X/Y/Z)	500500100mm	600600100mm
X/Y axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M5
Machine dimension	746785800mm	845885800mm
Machine weight	50kg	55kg

Main parts brand

1, Motor: Shinano

2, Guide: Hiwin

3, Photoelectric switch: Omron

4, Power supply: Meanwell

Features

1.High efficiency and precision
X-axis and Z-axis are driven by high-precision servo motors and ball screws, as well as high-quality tank chain, the equipment can be self-locking according to the predetermined coordinates, and the accuracy can be controlled within 0.1mm.

2.Automatic feeding
Equipped with blowing automatic nail feeding system, it automatically screens, arranges, detects and directly feeds the screws into the locking nozzle, eliminating the manual screw taking process and saving a lot of time.

3.Easy to operate
The screwing of the equipment and the manual picking and placing of the products are carried out on different platforms at the same time. One person can supervise several machines, which makes the operation easy and saves a lot of labour.

4.Good stability
Adopting imported brand PLC and pneumatic components, it has strong computing power, can work continuously without trouble and has stable performance.

5.Easy to place
Small size and easy to place. Can be placed next to the production line.
