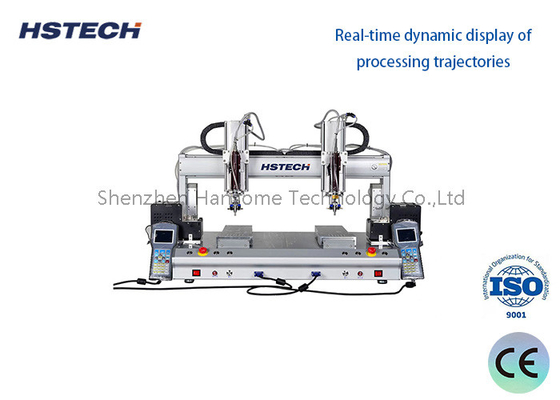

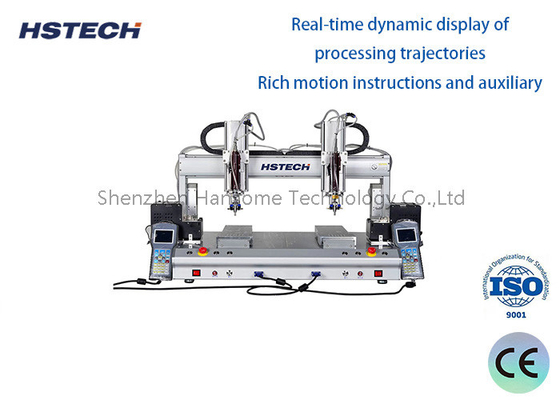

Desktop Screw Fastening Machine with Double Y Axis for Easy Product Replacement

Brand Name:	HSTECH
Model Number:	HS-SL7331S
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

6 Axis Screw Locking Machine

Feeding:

Suction Feeding

Axis:

6 Axis

Screw Feeder:

Double

Screw Driver:

Double

Moving Range:

300*300*100mm/300*300*100mm

Port:

Shenzhen

Oem:

Yes

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Product Description

High Precision 6 Axis Auto Screw Locking Machine, Repeat Accuracy ±0.02mm

Introduction

The screw machine is a 6 axis screw lock machine, it just like two 3axis screw lock machine made in one machine, so this unit machine has double working station, double screw driver and double screw feeder, it's a most efficiency machine which can locking two pcs of products at the same time.

Specification

Model	HS-SL7331S
Production name	6Axis Automatic Screw Locking Machine
Moving range(X1/Y1/Z1)	300300100mm
Moving range(X2/Y2/Z2)	300300100mm
X/Y axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M6
Machine dimension	1092585800mm
Machine weight	85kg

Features

1. With intelligent detection function, can detect missing locks, floating locks, sliding teeth, etc.
2. Precise torque. Easy adjustment to ensure the quality of locking.
3. Strong versatility, replacement screw conveying module can adapt to M1.4-M3 screw lock.
4. Small size, can cooperate with production line operation, reduce the labor intensity of workers.
5. High degree of automation. Staff quickly mastered operation and commissioning. A worker can manage several machines at the same time. Save labor.
6. Simple operation setting and convenient product replacement.

Main parts brand

1, Motor: Shinano 2, Guide: Hiwin 3, Photoelectric switch: Omron 4, Power supply: Meanwell
