| Brand Name: | HSTECH |
| Model Number: | HS-SL5331 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per month |

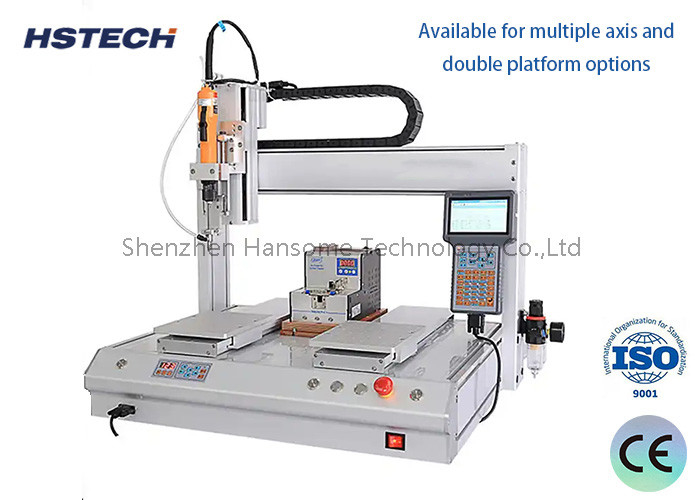

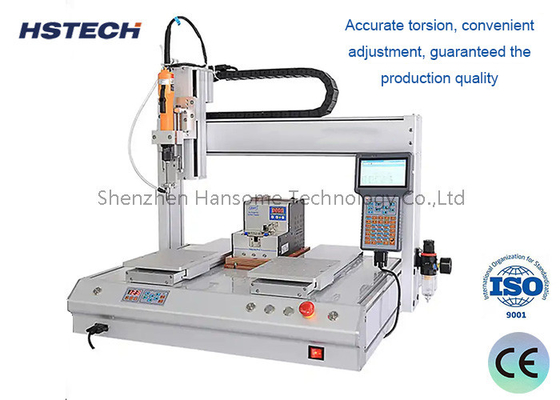

Desktop 4Axis Screw Locking/Fastening Machine with ±5mm Accuracy
Introduction
Using this screw locking machine to realizes the automatic conveying, tightening and testing of screws through various electric and pneumatic components.
Features
1. The screws will feed to the screwdriver bit directly one by one through a tube, to achieve extremely fast feeding and screwing.
2. The operator can use manual positioning to do the programming. It is highly efficient and very easy to learn the operation.
3. Support lock/slip/float alarm function.
4. Support auto sensing start operation function.
5. Support pre-post-fetch or pre-flight pre-adjustment.
Specfication
| Model | HS-SL5331 |
| Voltage | AC110V/220V,50/60Hz,Meanwell brand |
| X/Y1/Y2/Z working range | 500/300/300/100mm |
| XYZ speed | Max XY:600mm/s,Z:300mm/s |
| Y platform | 190*150mm |
| Repeat accuracy | 0.02mm |
| Motor | Stepper motor(Shinano Kenshi brand) |
| Driven system | Timing blet for X/Y, Z axis screw |
| Document support | CAD,CorelDRAW |
| Loading capacity | X/Y:10kg,Z:5kg |
| Linear Guide | HIWIN(Taiwan brand) |
| Photoelectric switch | (Germany brand) |
| Cylinder | AirTAC |
| Suitable screws | M1 - M5 |
| Machine size | 720*685*597mm |
| Gross weight | 75kg |
