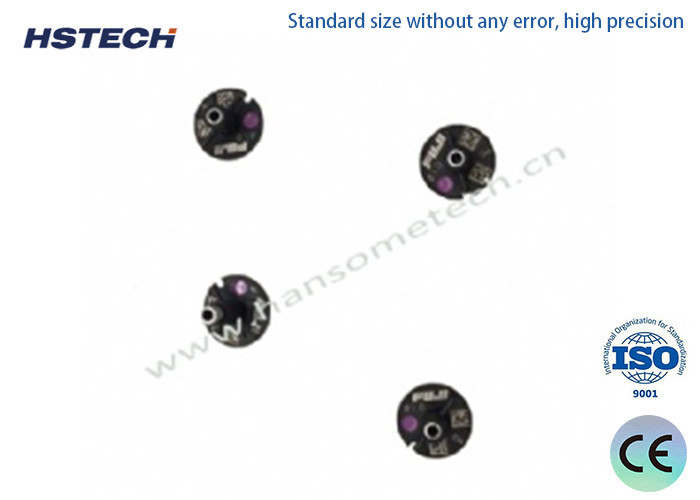

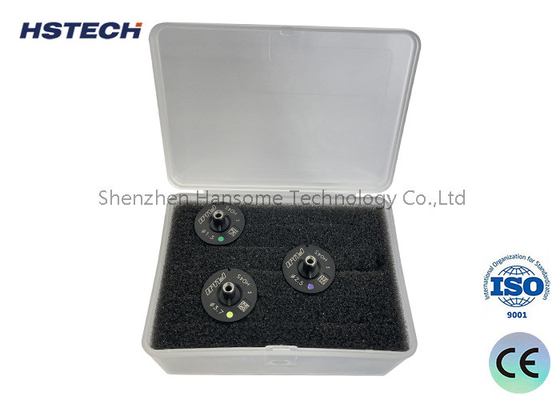

H04 Head 1.3 / 1.8mm SMT Nozzle FUJI Brand For NXT SMD Mounter Operation FUJI NXT 1st Generation Nozzles
In Surface Mount Technology (SMT), the placing machine is one of the central pieces of equipment. It is used to accurately place tiny electronic parts on circuit boards. The suction nozzles play a vital role in this process.
Structure of suction nozzle
The suction nozzle of the SMT mounter consists of a suction nozzle head, a connecting rod and a negative pressure vacuum source. The nozzle head is the part in direct contact with the circuit board, and is usually made of wear-resistant, high-temperature-resistant materials, such as ceramics or tungsten carbide. The connecting rod connects the nozzle head to the negative pressure vacuum source in order to generate suction. The negative pressure vacuum source is the source that provides the suction force, which is transmitted to the nozzle head via the connecting rod.
NXT H12/H08/H04/H01 Nozzle Series
| Part Numbwr | Description |
| AA05600 | H0812 Yellow Φ0.45/0.3 |
| AA05700 | H08 Blue Φ0.7/0.5 |
| AA05800 | H08 Pink Φ1.0 |
| AA20A00 | H08 Green Φ1.3 |
| AA06400 | H08 Orange Φ1.3 Melf |
| AA20B00 | H08 Aqua Φ1.8 |
| AA19G00 | H08 Orange Φ1.8 Melf |
| AA20C00 | H08 Purple Φ2.5 |
| AA06504 | H08 Orange Φ2.5 Melf(R07-025M-070) |
| AA0WT00 | H08 Purple Φ2.5G |
| AA20D00 | H08 Yellow-Green Φ3.7 |
| AA18C00 | H08 Yellow-Green Φ3.7G |
| AA20E00 | H08 Medium pruple Φ5.0 |
| AA06300 | H08 Red Φ5.0G |
| AA06W00 | H04 Pink Φ1.0 |
| AA06X00 | H04 Green Φ1.3 |
| AA06Y00 | H04 Aqua Φ1.8 |
| AA22Z14 | H04 Orange Φ1.8 Melf |
| AA06Z00 | H04 Pruple Φ2.5 |
| AA07F00 | H04 Pruple Φ2.5G |
| AA07A00 | H04 Yellow-Green Φ3.7 |
| AA07G00 | H04 Yellow-Green Φ3.7G |
| AA07B00 | H04 Medium pruple Φ5.0 |
| AA07H00 | H04 Red Φ5.0G |
| AA07C00 | H04 Medium pruple Φ7.0 |
| AA07K00 | H04 Dark Red Φ7.0G |
| AA07D00 | H04 Medium pruple Φ10.0 |
| AA07L00 | H04 Navy Φ10.0G |
| AA07E00 | H04 Medium pruple Φ15.0(R19-150-155) |
| AA07M00 | H04 White Φ15.0G(R19-150-155) |
| AA8WX00 | H04S Φ2.5(R19-025-155-S) |
| AA8CC00 | H04S Φ3.7(R19-037-155-S) |
| AA0AS00 | H01 Pink Φ1.0 |
| AA05800 | H01 Green Φ1.3 |
| AA0MZ00 | H01 Orange Φ1.3 Melf |
| AA06900 | H01 Aqua Φ1.8 |
| AA11R00 | H01 Orang Φ1.8 Melf |
| AA07000 | H01 Purple Φ2.5 |
| AA08400 | H01 Purple Φ2.5G |
| AA07100 | H01 Yellow-Green Φ3.7 |
| AA08500 | H01 Yellow-Green Φ3.7G |
| AA07900 | H01 Medium pruple Φ5.0 |
| AA07200 | H01 Red Φ5.0G |
| AA08000 | H01 Medium pruple Φ7.0 |
| AA07300 | H01 Dark Red Φ7.0G |
| AA08100 | H01 Medium pruple Φ10.0 |
| AA07400 | H01 Navy Φ10.0G |
| AA08200 | H01 Medium pruple Φ15 |
| AA07500 | H01 White Φ15.0G |
