| Brand Name: | JUKI |
| Model Number: | 504 |
| MOQ: | 5pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pcs per month |

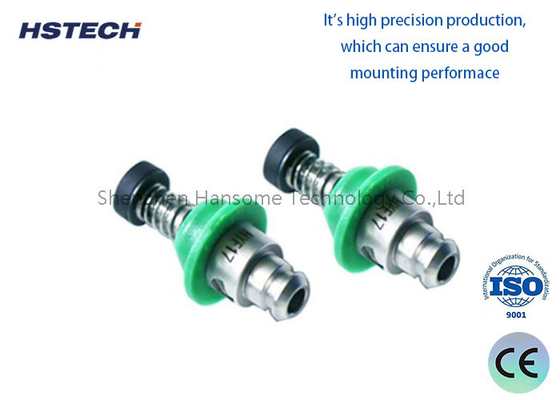

High Precision JUKI Nozzle with Tungsten Steel Ceramic for 2000 Series Mounter in SMT
Specifications
| Brand | JUKI |
| Usage | SMT production line |
| Suction hole | Single |
| Nozzle base | Tungsten steel |
| Parts number | E36037290A0 |
| Nozzle type | 504 |
| Size(inch) | 1.22 x 0.63 inch(height x diameter) |
| Size(mm) | 31x16mm (height x diameter) |
| Nozzle color | Sliver and green |
| Material | Tungsten steel+rubber+ceramic |
| Weight | 8g/0.353 ounces |
| Package | Customized Blister and carton box |
Features
1. Used for SMT production lines to replace old and damaged nozzles.
2. Stable design, with tungsten steel base and high-quality rubber suction parts for better performance and longer lifespan.
3. A suitable spring in the middle can achieve high-precision suction.
4. The color design of green lines is beautiful and environmentally friendly.
5. Suitable for the suction and discharge of components such as cathode capacitors, diodes, SOT, QFN, BGA, etc.
6. Compatible with JUKi 2000 series surface mount machines.

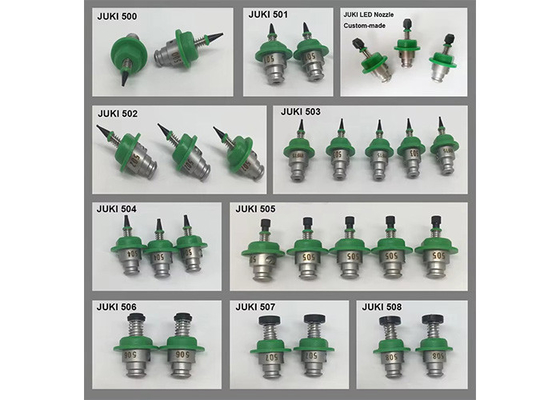

JUKI 2000 Series nozzle models
E36087290A0 JUKI NOZZLE 500 ASSY.1.0×0.5
E36007290A0 JUKI NOZZLE 501 ASSEMBLY 0.7×0.4
E36017290A0 JUKI NOZZLE 502 ASSEMBLY O 0.7/O 0.4
E36027290A0 JUKI NOZZLE 503 ASSEMBLY O 1.0/O 0.6
E36037290A0 JUKI NOZZLE 504 ASSEMBLY O 1.6/O 1.0
E36047290A0 JUKI NOZZLE 505 ASSEMBLY O 3.5/O 1.7
E36057290A0 JUKI NOZZLE 506 ASSEMBLY O 5.0/O 3.2
E36067290A0 JUKI NOZZLE 507 ASSEMBLY O 8.5/O 5.0
E36077290A0 JUKI NOZZLE 508 ASSEMBLY O 9.5/O 8.0
