SMT Production Inline PCB Surface Dust Static Electricity Cleaner Equipment
Machine introduction

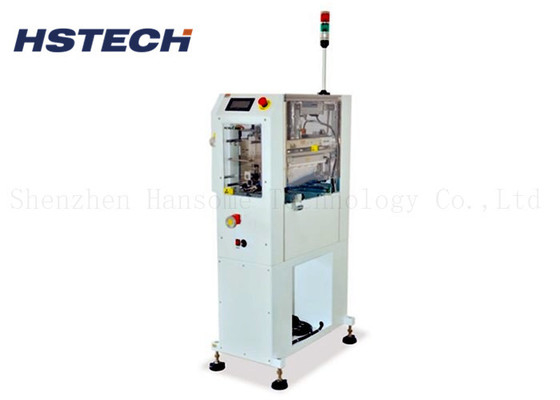

This machine is a automatic PCB cleaning machine in the SMT production line, it used for clean the dust, static, and other dirties on the PCB surface.
The machine used between the PCB loader and screen printer, also used before the conformal coating equipment. It's a new development and also a trend for the SMT production line, because it clean the PCB before the welding, so the defects during and after the welding will be eliminated in advance.
Features

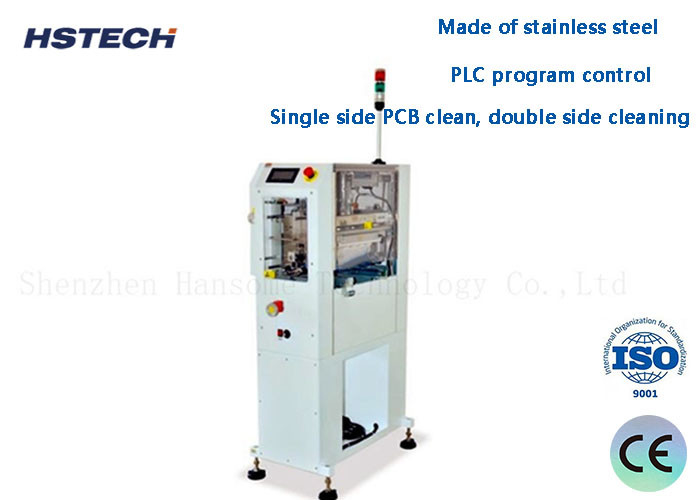

1, The whole machine is made of stainless steel.
2, PLC program control.
3, Two pcs Keyence brand ion wind bar(ionizer), two pcs sticker roller, one pc adhesive roller combined for the whole cleaning process.
4, Ionizer use for clean the electric static on the PCB.
5, Adhesive roller and sticker roller work together clean the dust.
6, In-line cleaning, upstream machine is the PCB loader, down stream machine is the screen printer.
7, Draw-out design for easy changing of adhesive rollers and maintenance.
8, Standard machine is the single side PCB clean, double side cleaning process is optional.
9, Manual adjust the PCB width, automatic adjustment is available based on customer's request.
9, SMEMA signal compatible.
Specification
| Model | HS-330BC | HS-460BC | ||
| PCB dimension | (50*50)~(460*330) | (50*50)~(530*460) | ||
| Machine dimension | 555*900*1350 | 555*1030*1350 | ||
| Weight | 90kg | 110kg | ||
| PCB thickness | 0.5~3.2mm |
| Power supply | AC100~230V,single phase,300A |
| Air supply | 0.4~0.6Mpa |
| ESD brush | Top 1 pc |
| Dust remove sticker roller | top 2 pc |
| Adhesive roller | Top 1 pc |
| Vacuum device | 1 pc |
| Ion wind bar brand(ionizer) | 2 pcs, best quality Keyence brand from Japan |
| If with dust collector | Yes |
| Conveyor rail adjustment | Crank wheel |
| Fixed rail | Front fixed |
| Transport speed | 0~9m/min,adjustable |
| Transport height | standard 900±20mm |
| Direction | L to R, or R to L,optional |
| Cycle time | Around 8s |
| Signal | Smema |
