| Brand Name: | HSTECH |
| Model Number: | HS-600 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets per month |
Data sheet of Pneumatic stencil cleaner HS-600.pdf...

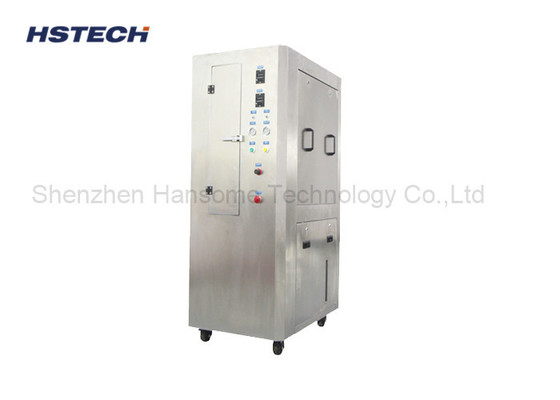

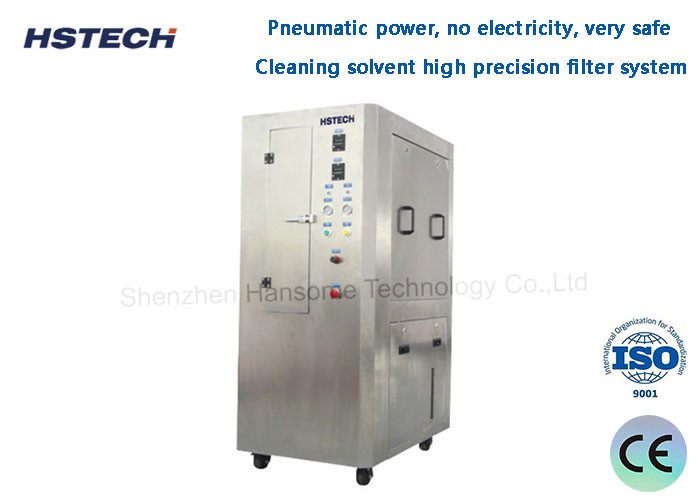

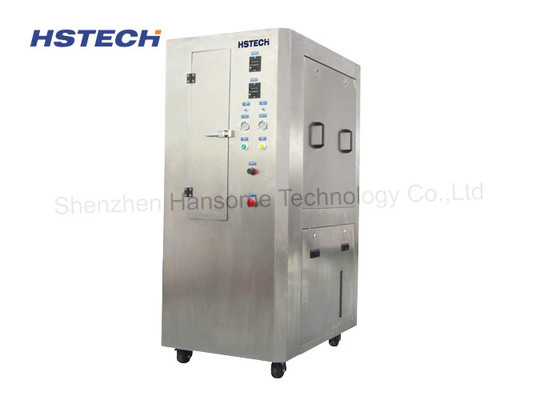

Fully Pneumatic Power Stainless Steel Cabinet SMT Stencil Cleaning Equipment
Introduction
This machine serve for the electronic manufacturing, it used to clean stencil,screen print,mesh, copper screen,micro screen and crystal disk,also the misprinted circuit board ,fixture, etc.
Specification
| Model | HS-600 |
| Application | stencil,cooper screen,gule screen |
| Stencil size | standard 29inch and below |
| Cleaning solvent | Alcohol |
| Cleaning liquid capacity | Max 45L,Min20L |
| Best cleaning fluid using volume | 40L |
| Liquid consumption | 120ml/pc |
| Cleaning method |
Rotary double side pressure injection and high pressure air |
| Cleaning time | 2~4 Min Stencil and Copper Screen |
| Drying time | 2~5 Min |
| External air supply | 0.4Mpa~0.6Mpa |
| Consumer air quantity | 400~600L/Min |
| Air outlet size | φ125*25mm |
| Solder dross filter mode | 3 level filter(10um,5um,1um) |
| Weight | 200kg |
| Machine dimension | 980MM(L)*700MM(W)*1730MM(H) |
Features
1, Stainless steel cabinet,durable,also can resist hurt by acid and alkali cleaning chemistry.
2, Pneumatic power, no electricity, very safe.
3, Cleaning solvent high precision filter system,which can lower cleaning solvent consumption.
4, Unique design on air exhaust can reduce cleaning chemistry consumption.
5, Good adaptability for compressor air only 0.45Mpa could run the machine.
6, One button operation, can control the cleaing and drying process simply.
7, Famous brand parts(pump and air source filter),high quality which can ensure long term quality and reliability.
8, Modular design to ensure easy maintenance.
Machine details
Cleaning effect
About Packaging
