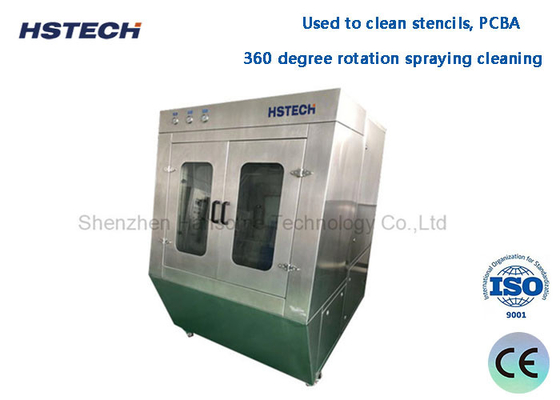

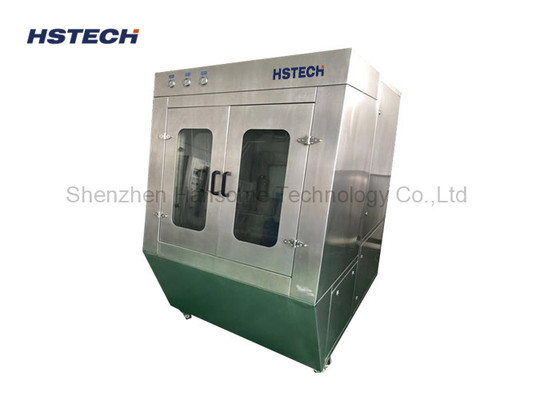

28KW PCB Ultrasonic Stencil Cleaner Hot Air Drying Stepper Motor Control Water-Based Stencil Cleaner
Water based stencil cleaner is used the water based solvent as the cleaning liquid, apply high pressure spraying cleaning and ringsing, also hot air drying to fulfill all the process, mainly for cleaning stencil, plastic mesh,PCB/PCBA, squeegee etc.
Features
1. Used to clean stencils, PCBA, etc, with the water-based solvent, adapt high pressure spray system.
2, The whole process including cleaning, ringing and drying, cleaning process: cleaning chemical isolation - rinsing (open loop/closed loop) - drying.
3, 360 degree rotation spraying cleaning, no blind cleaning area.
4. Double liquid tank, equipped with heating system, implementation needs cleaning-rinsing-drying.
5, Window cleaning pressure can be adjusted independently, process is more wide, solve the SMT stencil tension in the process of high pressure cleaning problem.
6. Liquid and the pump pressure can be displayed through the panel pressure gauge, feedback the equipment running status in time .
7. Drift lotion resistivity monitoring, ensure the cleanliness, the resistivity can be set up, meet the demand of different halftone technique.
8, Touch screen panel control, usind stable and reliable imported brand color touch-screen, can pre-setting solvent temperature, cleaning time, rinse times/time, rinse temperature, drying time, drying temperature, electrical conductivity monitoring parameters and so on.
9, Stepper motor control spray lance reciprocating spraying, can choose spraying area.
10. Integral high quality stainless steel fuselage, strong and durable, anti-acid, alkali cleaning fluid, anti-rust, etc.
11. Water circulation system: Independent cleaning liquid tank,rinsing liquid tank equipped with stainless steel precision filter, according to need to replace filter element to ensure cleaning performance is better.
12, Automatic drainage system, convenient management and maintenance.
Specification
| Model | HS-610 |
| Cleaning method | Double side 360 degree high pressure spraying cleaning,ringing |
| Drying method | High pressure hot air drying |
| Application stencil size | Standard 29 inch, or customized |
| Cleaning fluid capacity | 50L*2PC(max) |
| Best liquid usage | 40L*2PCS |
| Clean and risn method | Left-right moving high pressure liquid spray cleaning |
| Drying method | High pressure hot air(Optional super models) |
| Clean time | 2-5 Min |
| Cleaning fluid separation time | 40seconds |
| Rising time | 2-5 Min |
| Rising times | 1~99times |
| Drying time | 2-5 min |
| Cleaning liquid recycling | 1μm (Micro filter::rosin, solder paste, flux and pollutants) |
| Rinse liquid emission filter | 5μm (Micro filter: rosin, solder paste, flux and pollutants) |
| Liquid heating temperature | room temp～60℃ |
| Noise | Less than 50 decibels |
| Range of resistivity tester | 0~18MΩ |
| DI water supply | 30～60L/min |
| DI water pressure | ≤0.4Mpa |
| DI water Gateway connecting pipe | 1 inch |
| Air supply | 0.45Mpa~0.7Mpa |
| Net weight | 500KG |
| Air outlet size | Φ124(W)×30mm(H) |
| Machine | 1600mm(L) ×1160mm(W) ×1850mm(H) |
