| Brand Name: | HSTECH |
| Model Number: | HS-801 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |

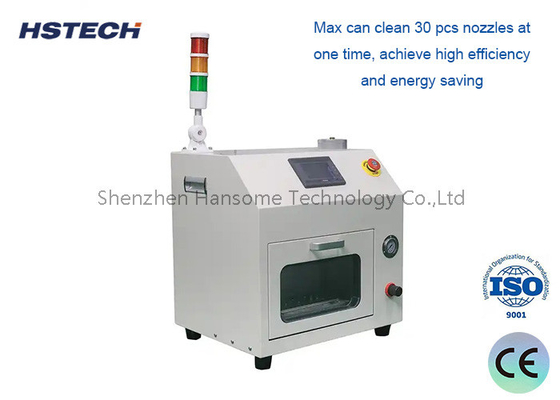

SMT Nozzle Cleaning Machine - D.I Water/Compressor Air/Max Clean 30pcs
Product Features
1.The appearance adopts streamlined design, which is beautiful and generous;
2.The equipment uses 3 nozzles to clean 10 rows of 30 nozzles in turn, achieving high efficiency and energy saving;

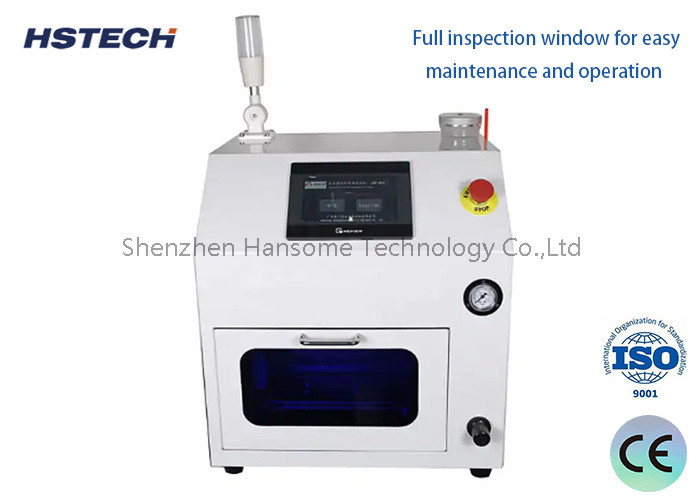

3.The whole process inspection window is convenient for maintenance and operation;
4.The parts in contact with water are all made of 304 stainless steel, which is rust-proof, corrosion-resistant, sturdy and stable;
5.Humanized design, one-button start and stop can be achieved with external buttons;
6.Touch screen + PLC distributed control is adopted, and the performance is stable and reliable;
7.Easy to operate, the interface is simple and can be switched between Chinese and English at any time;
10.It has a false operation alarm and emergency braking system, and is equipped with an overload protection system;
11.Use environmentally friendly and pollution-free industrial pure water (HP value 5-7 soft water) or filtered pure water;
12.Centralized collection of waste is convenient for maintenance.
Specification
| Model | HS-801 |
| Usage | Cleaing dirty on the nozzles |
| Cleaning objects | Nozzles from all the chip mounter |
| Air pressure | 0.5~0.6Mpa |
| Air source | Pure compressor air |
| Control mode | Touch Screen |
| Jet pressure | ≤0.4MPa |
| Air wastage | Under 280NL/min |
| Water source | D.I water |
| Water storage | 800cc |
| Water consumption | 300cc/hrs |
| Admission pipe/Drainpipe | φ8/φ6 |
| Nozzle tray | Default 30 nozzles |
| Nozzle size | 0201-2512inch |
| Noise | 35-60dB |
