| Brand Name: | HSTECH |
| Model Number: | HS-600 |
| MOQ: | 1 set |
| Price: | 9000~12000usd/set |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 30 sets per month |
Data sheet of Pneumatic stencil cleaner HS-600.pdf...

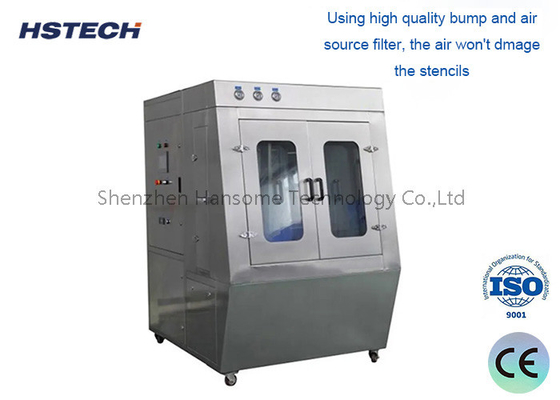

360 Degree Rotation SMT Stencil Cleaner with High Quality Nozzles
Machine introduction
The machine consists of cleaning, rinsing, drying, and filtering systems. Powered by electricity and compressed air, operators manually place the boards into the cleaning chamber. After setting the cleaning, rinsing, drying, and other relevant parameters on the touchscreen, they press the start button, and the boards are automatically cleaned, rinsed, and dried.
Once the set cleaning process is complete, the machine stops automatically and resets for the next operation, enhancing efficiency and quality. This equipment is a new type of high-performance fully automatic cleaning device. It uses water-based cleaning agents and DI water for rinsing, posing no safety hazards and causing no harm to personnel.
Features
1, The machine adopt high quality SUS 304 stainless steel machine body, durable and stable, at the same time with beautiful appearance.

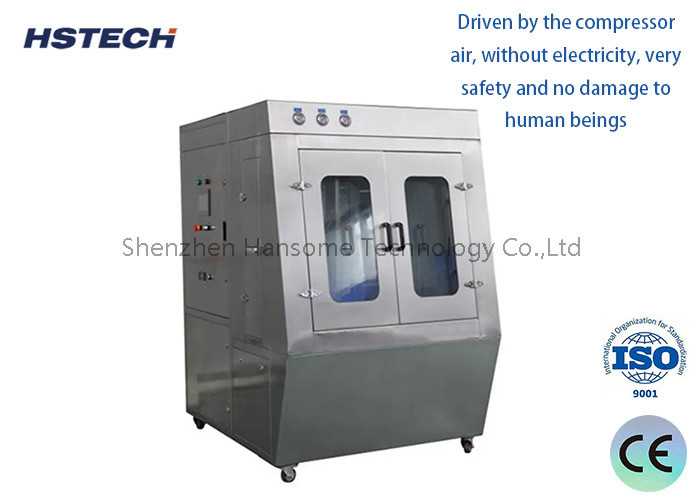

2, Driven by the compressor air, without electricity, very safety and no damage to human beings.
3, With both cleaning and drying function, one button operation, automatically drying the stencils after cleaning process.
4, Two sets spray bars 360 degree rotation cleaning, high quality spray nozzles, no cleanign dead corner and enough spraying pressure.
5, Cleaning solvent in and out pipe equipped.
6, 3 levels filter system, 10um,5um,1um, cleaning solvent recycle using, cost-effective and save energy.
7, Safety cleaning room, after the stencils put in the cleaning room, it will lock down tightly.
8, Modular design, automatic solvent siphone and emission, and all automaticaly operation, very efficienty.
9, Easy maintenance, open the cover and the operator can change the filters easily.
Specification
| Model | HS-600 |
| Power supply | Compressor air |
| Application | stencil,metal mesh, steel mesh,cooper screen,gule screen |
| Stencil size | standard 29inch and below,740*740*40mm |
| Cleaning solvent | Alcohol |
| Cleaning liquid capacity | Max 45L,Min20L |
| Best cleaning fluid using volume | 40L |
| Liquid consumption | 120ml/pc |
| Cleaning method |
Rotary double side pressure injection and high pressure air |
| Cleaning time | 2~4 Min Stencil and Copper Screen |
| Drying time | 2~5 Min |
| External air supply | 0.4Mpa~0.6Mpa |
| Consumer air quantity | 400~600L/Min |
| Air outlet size | φ125*25mm |
| Solder dross filter mode | 3 level filter(10um,5um,1um) |
| Weight | 305kg |
| Machine dimension | 980MM(L)*700MM(W)*1730MM(H) |
Cleaning performance
