| Brand Name: | HSTECH |
| Model Number: | HS-208 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 200sets per month |

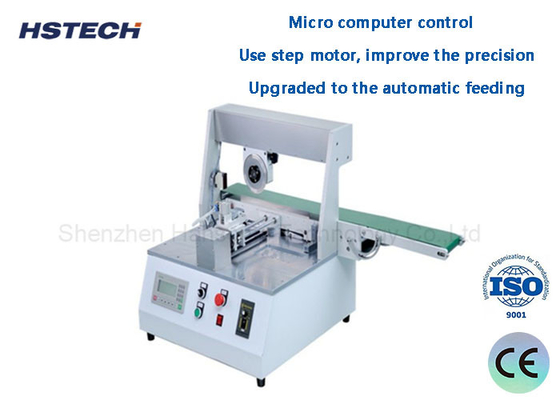

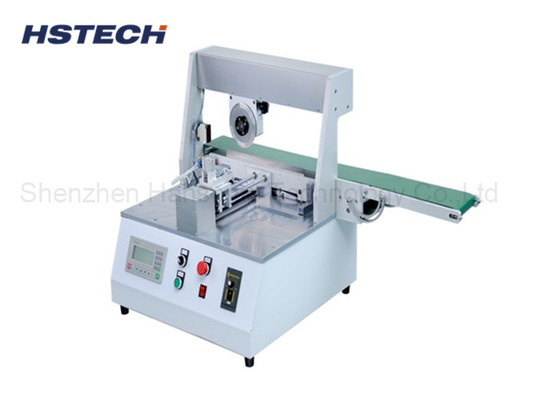

ESD Transport Belt PCB Depaneling Equipment Max 360mm Blade Moving Type PLC Control Automatic Blade Moving PCB Separator
Introduction
This machine is a automatic PCB separating machine, it equipped with the automatic board feeding system, adopt the upper circular blade and bottom linear blade combination, during the separating, the PCB will keep fixed, and the circular will moving to finish the depaneling process.
Advantages
The traditional blade moving PCB separating machine requires manual placement, positioning, time-consuming and labor-intensive, and the production efficiency is low.
This device has been upgraded to the automatic feeding, which is controlled by microcomputer and can customized the moving distance based on the size of the PCB boards. Without manual positioning, it also can connect to the board loading machine, saving labor, improving board separation efficiency and higher degree of automation.
Features
1, Micro computer control, set the parameter easily and fast.
2, The PCB will be fixed during the separating, won't damage the components on the PCB surface.
3, The distance between the upper circular blade and down linear can be adjustable, the adjustment range 0-15mm.
Specification
| Product name | Auto feeding blade moving PCB separator |
| Model | HS-208 |
| Part-up height | 15mm |
| Air supply | 0.6-0.8Mpa |
| Max board length | 360mm |
| Voltage | AC220V/110V,50/60Hz |
| Separating width | 50~360mm |
| Blade material | SKD61 high speed steel |
| Separating speed | Adjustsble |
| Suitable board | Aluminum, all kinds of fiber-glass board, FR4 |
| Machine size | 1000*850*1130mm |
| Weight | 100kg |
