| Brand Name: | YAMAHA |
| Model Number: | 39A |
| MOQ: | 1 pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pcs per month |

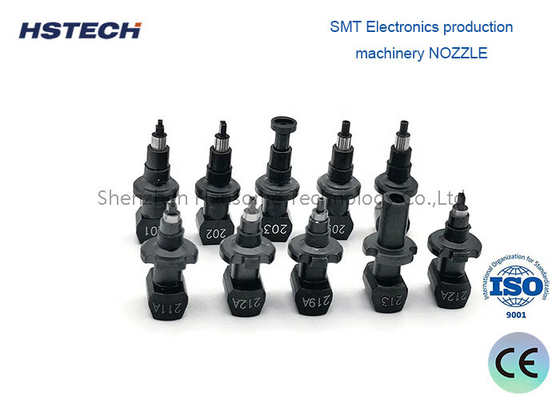

SMT Nozzle Steel Material KM0-M711J-A0X 39A Model for YV100II/XG/XG/FNC/YS12/YG12/YS24/YG200/YG100
YAMAHA YV100II Nozzle parts
| Part Number | Description |
| KMO-M711A-02X | 31 1.2x1.0(X) |
| KMO-M711C-00X | 32-2 Φ4.0/3.0/2.0 |
| KMO-M711D-00X | 33 O-ring |
| KMO-M711E-00X | 34 O-ring |
| KMO-K71AB-AOX | 35 Melf |
YAMAHA Pick and Place Machine parts
| Brand | Machine model | Specification |
| Yamaha | YV100II | 31A/32A/35A/39A |
| Yamaha | YV100X/XG | 71A/72A/73A/74A/76A/79A |
| Yamaha | YV88XG | 61F/62F/63F/69F |
| Yamaha | FNC | 71F/72F/73F/79F |
| Yamaha | YS12/YG12/YS24 |
301A/302A/303A/304A/305A/306/309A/310A/311A
/312A/313A/314A/315A/316A/317
|
| Yamaha | YG200 | 201/201A/202A/203A209A/222F |
| Yamaha | YG100 | 211A/212A/213A/214A/215A/219A |
Mounter suction nozzle is not only the mounter to absorb the components for paste, put the key parts of the action, but also optical vision system of the camera to take pictures of the background, which mainly uses the principle of vacuum adsorption for the absorption of the components, and the use of blowing the adsorption in the suction nozzle of the components into the circuit board coordinates of the position.
Different nozzles are used for different components. In order to have a good background when the image is taken, so that the target information can be highlighted smoothly during image processing, almost every nozzle has its own reflective background, and when the image is extracted, the nozzle is used as a background to make the component's image contrast strong.
