| Brand Name: | HSTECH |
| Model Number: | HS-120ST |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets per month |

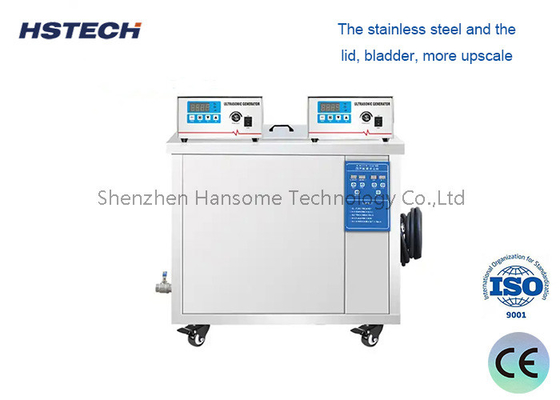

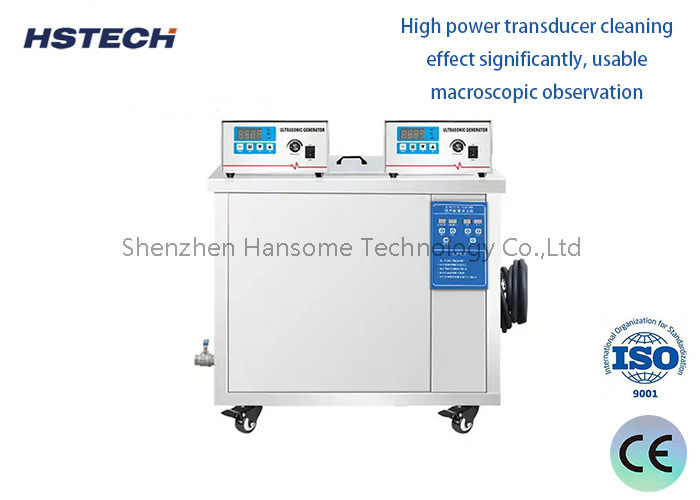

28/40 kHz Ultrasonic Cleaner 38L for Oil Dirty Parts Cleaning
Features
1.The use of imported high-efficiency ultrasonic transducer, compared with the same equipment to install more transducers, cleaning is more powerful, high ultrasonic power density, cleaning effect is better;
2.The use of 304 stainless steel as the inner tank, pure manual argon welding, thickened to 2mm, strong and durable;
3.Digital control time, 1-99 minutes / hour can be adjusted, the display is more accurate;
4.Constant temperature system, 20-95 °C adjustable, equipped with stainless steel heating tube, heating faster;
5. Adjustable power, adjust the ultrasonic power according to the user's cleaning needs, efficient and clean;
6.Memory function, the device with independent memory chip, set the time after no need to re-adjust;
7.Industrial-grade electricity standard line, heat resistance is not easy to soften, and it is safer to use;
8.Equipment configuration: stainless steel cleaning basket, drain valve, power cord, silencer cover, movable caster, generator control box, etc.
9.For the machine with ultrasonic power under 1500W, we can make it with built-in generator or separate generator; For the machine above 1500W, it is with separate generator.
Specification
| Model | HS-120ST |
| Ultrasonic frequency | 28/40 kHz |
| The tank material | Stainless steel SUS304 stamping slot |
| Tank capacity | 38L |
| Timer | 1~99 min adjustable |
| Heater | 0 ~80℃ adjustable |
| Power | AC 100 ~ 120 V, 60 Hz/AC 200 ~ 240 V, 50 Hz |
| Ultrasonic power | 40~600 W adjustable, 12 transducers |
| Heating power | 1500W |
| The tank size | 500 x 300 x 250 mm (L x W x H) |
| Shape dimension | 670 x 480 x 700 mm (L x W x H) |
| N.W | 30KG |
| G.W | 35KG |
| Certification | CE,RoHS |
Ultrasonic device
1, Ultrasonic installation method: bottom-mounted shock plate;
2, 72 vibrators are installed at the bottom of the tank; Ultrasonic power: 0-3600W can be adjusted
3, ultrasonic power: 0 ~ 1800W * 2 sets (continuously adjustable), ultrasonic frequency 28 / 40KHz
4, The ultrasonic transducer adopts the pure industrial shock head imported from South Korea, which has large cleaning power and long service life;
5, Adopting the latest bonding technology of Korea and imported special adhesive to ensure better bonding performance between the transducer and the vibrating surface. No degumming considerations, stable performance. The transducers are all reinforced and equipped with high frequency wires.
