| Brand Name: | HSTECH |
| Model Number: | HS-801 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |

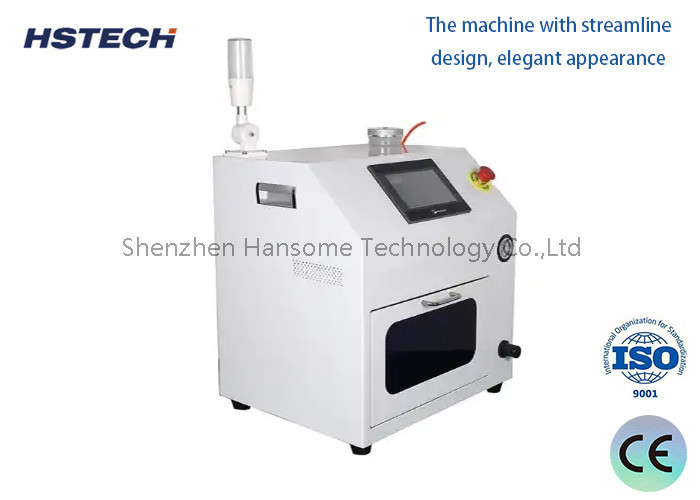

SMT Cleaning Equipment: Easy Touch Screen 30pcs Nozzle Cleaner with D.I Water
Product Features
1. All parts in contact with water are made of 304 stainless steel, which is rust-proof, corrosion-proof, sturdy and stable.
2. Pneumatic part of the use of imported Japanese SMC pneumatic components, to better ensure the stability and efficiency of the work efficiency!
3. Tray materials are all made of 304 stainless steel, effective anti-rust, anti-corrosion! Nozzle cleaner standard configuration for each free configuration of a nozzle tray.
4. The machine to Mitsubishi PLC as the control core, the use of modules MITSUBISH chemical control, the design of multiple protection measures, high degree of automation, high reliability, excellent performance.
Specification
| Model | HS-801 |
| Usage | Cleaing dirty on the nozzles |
| Cleaning objects | Nozzles from all the chip mounter |
| Air pressure | 0.5~0.6Mpa |
| Air source | Pure compressor air |
| Control mode | Touch Screen |
| Jet pressure | ≤0.4MPa |
| Air wastage | Under 280NL/min |
| Water source | D.I water |
| Water storage | 800cc |
| Water consumption | 300cc/hrs |
| Admission pipe/Drainpipe | φ8/φ6 |
| Nozzle tray | Default 30 nozzles |
| Nozzle size | 0201-2512inch |
| Noise | 35-60dB |
