| Brand Name: | HSTECH |
| Model Number: | HS-801 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
Touch Screen Control Cover Window JUKI FUJI YAMAHA SMT Mounter Nozzle Cleaner
Product Features
1,Appearance adopts streamline design, beautiful and generous.

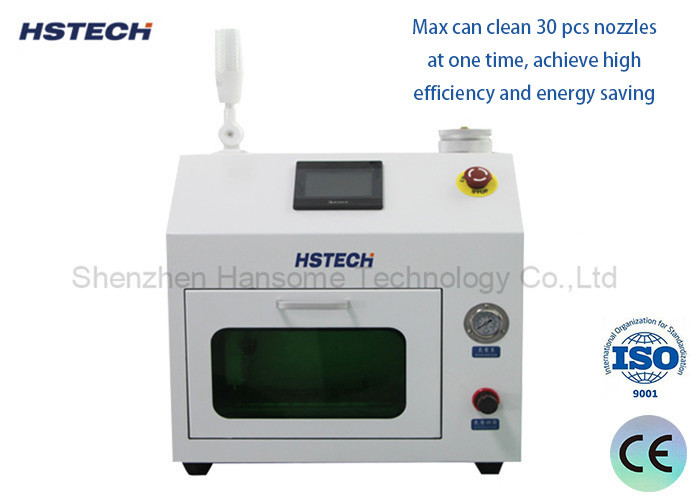

2,Using 3 nozzles to clean 10 rows of 30 suction nozzles sequentially, realising high efficiency and energy saving.

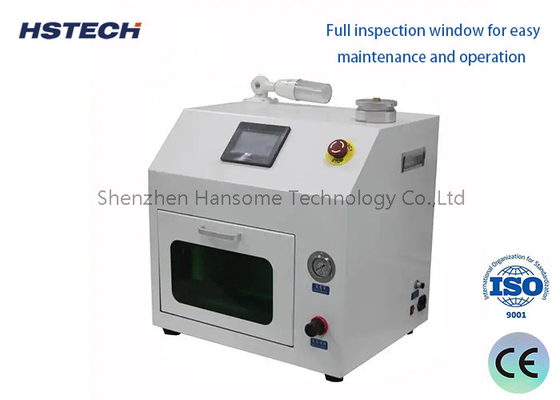

3,The whole inspection window is convenient for maintenance and operation.
4,Water contact part adopts 304 stainless steel, anti-rust, anti-corrosion, solid and stable.
5, user-friendly design, can be in the external button to achieve a key start and stop;.
6,Adopting touch screen + PLC centralised control, stable performance.
7, easy to operate, friendly interface and can be switched between Chinese and English.
8,With false action alarm and emergency braking system, with overload protection system.
9, the use of industrial pure water (HP value of 5-7 soft water) or tap water.
10 The centralised collection of waste is convenient for maintenance and repair.
Specification
| Model | HS-801 |
| Usage | Cleaning dirty nozzles and reuse them |
| Cleaning objects | JUKI, FUJI, YAMAHA, PANASONIC, etc nozzles |
| Cleaning nozzle size | 0201 and bove |
| Cleaning time | 2-4 min |
| Drying time | 2-4 min |
| Positioning system | Automatic |
| Way to place nozzles | Customized nozzle tray |
| Power supply | AC110V/220V, 50/60Hz |
| Air pressure | 0.5~0.6Mpa |
| Air source | Pure compressor air |
| Control mode | Touch Screen |
| Jet pressure | ≤0.4MPa |
| Air wastage | Under 280NL/min |
| Water source | D.I water |
| Water storage | 800cc |
| Water consumption | 300cc/hrs |
| Admission pipe/Drainpipe | φ8/φ6 |
| Nozzle tray | Default 30 nozzles |
| Nozzle size | 0201-2512inch |
| Noise | 35-60dB |
