| Brand Name: | HSTECH |
| Model Number: | HS-801 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |

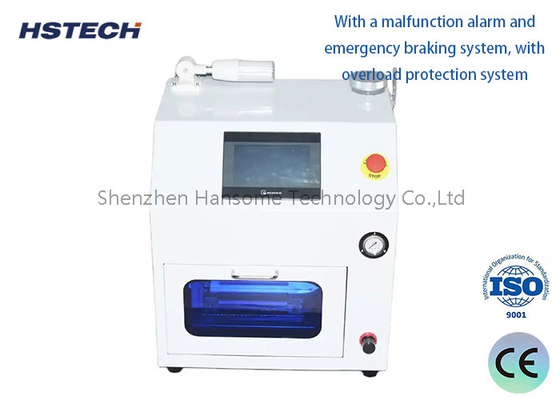

Nozzle Cleaner with D.I Water Pure Compressor Air - Max Clean, 30pcs SMT
Equipment introduction
The automatic nozzle cleaning machine can automatically complete the nozzle cleaning and drying process. It is mainly used to clean small components such as 0603, 0402, 0201, 01005 and other high-precision nozzles.
Fully automatic is the latest nozzle cleaning machine developed by our company. In the design process of this nozzle cleaning machine, we used our company's rich fluid equipment development experience, foresighted the development trend of the nozzle cleaning machine, and absorbed a lot of customers' opinions and suggestions. Its advent created the nozzle cleaning New concept of machine.
The machine uses Mitsubishi PLC as the control core, adopts modular control, and adopts multiple protection measures in the design. It has a high degree of automation, strong reliability and excellent performance. The cleaning system of this machine adopts pulse boosting cleaning method, which is more efficient and cleaner than traditional models.
Specification
| Model | HS-801 |
| Usage | Cleaing dirty on the nozzles |
| Cleaning objects | Nozzles from all the chip mounter |
| Air pressure | 0.5~0.6Mpa |
| Air source | Pure compressor air |
| Control mode | Touch Screen |
| Jet pressure | ≤0.4MPa |
| Air wastage | Under 280NL/min |
| Water source | D.I water |
| Water storage | 800cc |
| Water consumption | 300cc/hrs |
| Admission pipe/Drainpipe | φ8/φ6 |
| Nozzle tray | Default 30 nozzles |
| Nozzle size | 0201-2512inch |
| Noise | 35-60dB |
