| Brand Name: | HSTECH |
| Model Number: | HS-801 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |

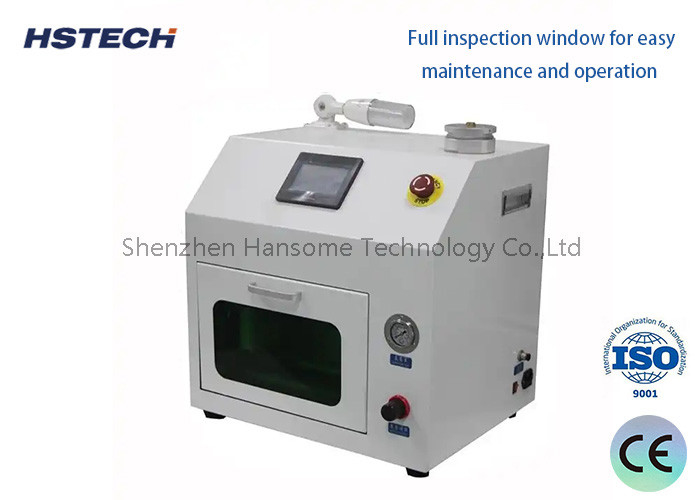

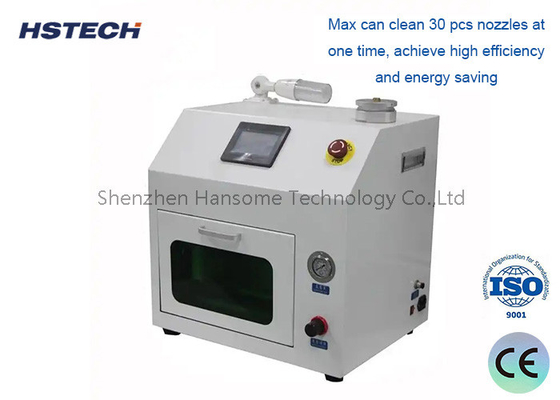

Automatic 30pcs SMT Nozzle Cleaner w/ D.I Water & Air Compressor
Product Features
1.The appearance adopts streamline design, beautiful and elegant;
2. 30 nozzles are used for cleaning at the same time to achieve high efficiency and energy saving;
3.Inspection window throughout the process, convenient for maintenance and operation;
4.All parts in contact with water are made of 304 stainless steel, anti-rust, anti-corrosion, firm and stable;
5.Humanized design, one-key start and stop can be realized by external buttons;
6.Using touch screen + PLC distributed control, stable and reliable performance;
7.Convenient operation, friendly interface and can switch between Chinese and English at any time.
8.It has a malfunction alarm and emergency braking system, with an overload protection system;
9.Use environmentally friendly and pollution-free industrial pure water (HP value 5-7 soft water);
10.The centralized collection of wastes is convenient for maintenance.
Specification
| Model | HS-801 |
| Usage | Cleaing dirty on the nozzles |
| Cleaning objects | Nozzles from all the chip mounter |
| Air pressure | 0.5~0.6Mpa |
| Air source | Pure compressor air |
| Control mode | Touch Screen |
| Jet pressure | ≤0.4MPa |
| Air wastage | Under 280NL/min |
| Water source | D.I water |
| Water storage | 800cc |
| Water consumption | 300cc/hrs |
| Admission pipe/Drainpipe | φ8/φ6 |
| Nozzle tray | Default 30 nozzles |
| Nozzle size | 0201-2512inch |
| Noise | 35-60dB |
